LUNA ROOFSclassic roof • warm roof
Why are LUNA roof products perfect for your project?
LUNA is the suite of roof products we supply from Ultraframe systems.
It is the new high-standard brand all others will aspire to. Superior manufacturing elevates our product above all other roof products. When you need the best, LUNA will be your premier thought.
The same products, transcending others by simply making them better.
Not a customer?
Click below to apply.
Or click here to find out more about us.
Classic Roofs
Modern and classic style glazed roofs with multiple options for stylish conservatories or orangeries
Quality as standard
All our glass is toughened, double-glazed safety glass: 4mm glass – 16 mm Argon filled cavity – 4 mm glass, with black warm edge spacer as standard. It is manufactured in specialist roof glass factories and guaranteed for 10 years.
Light Transmission
Percentage of light transmitted through the unit. A low % can reduce glare from the sun.
U-Value w/m2
How good the material is at preventing heat loss to the outside; The lower the figure, the more thermally efficient it is.
Solar Rejection
The proportion of the sun’s heat that is rejected.
Generally the higher the percentage the better the glass is. However, if you have a North facing or shady site you may want solar rejection to be lower.
Self Cleaning
All glass has an easy clean coating and is specially designed to remain cleaner for longer than conventional glass. The transparent coating on the glass harnesses the power of ultra-violet rays from the sun and rain (or water) to break down dirt and grime, then wash it clean away.
UV Protection
The higher the percentage, the lower the possibility of furniture and fabrics fading.
Features
• Click-fit speedlocks and top-caps
• Strong eaves beam, ridge, valley and jack rafter
• 4 unique cornices
• No cutting or drilling on site
• Unique double-skin top caps and adjustable speedlocks optimising glazing bar compression
• Sturdiest, most durable gaskets and glazing stops
• Watertight in winds up to 130mph
• Triple layer storm shield at radius end
• The first roofing system to be approved by BBA
• The only roof engineered to a postcode
• NASA satellite data used to calculate maximum wind and snow load
• Specialist software will engineer every critical element of the roof for optimum deflection, compression and tension
• Low pitch eaves beam and variable ridges for pitches from 2.5 to 40.9°
• Advanced software instantly validates structural requirements of any large shape and complex designs
• Thermally efficient rooms with insulated pelmets
• Made in Britain for over 35 years
ROOF configurations
THE FEATURES
Profile:
Strong ‘wineglass’ bars engineered to withstand extreme weather conditions for your postcode
Top-caps:
Chambered top-caps provide maximum security and thermal efficiency. Available in any RAL colour (special order)
Speedlock:
Patented Speedlock ensures bars are secured and glazing is perfectly aligned
Hub:
Weathering hub offers ultimate protection from wind and rain
Glazing stops:
Robust glazing supports prevent glass slippage
Jack rafters:
Wind resistant jack rafters – tested in 120mph winds
Cornice:
Optional cornice hides gutters and adds shape to the roofline. Four designs available
Columns:
Optional super-insulated columns
Roof vent:
Slimline aluminium roof vent
Eaves beam:
Optional super duty eaves beam for larger spans
Anchor clips:
Anchor clips control natural movement for a weathertight seal
Twinbolts:
Twinbolts deliver super-strong structural joints
Pelmet:
Optional internal pelmet insulates the eaves – a useful place for spotlights or speakers
PARTSTHE PARTS THAT MAKE UP THE CLASSIC ROOF - click to enlarge image
cornice optionsFour cornice styles available
COLOURSSTANDARD CLASSIC ROOF COLOURS. RAL COLOURS ARE AVAILABLE
white
RAL: 9003
sage green
BSI: BS14C35*
cream
RAL: 9001
irish oak
RAL: 1011
rosewood
RAL: 8017
light oak
RAL: 8003
grey
RAL: 7016
ebony black
RAL: 8022
fir green
RAL: 6009
Please note: Due to variances of screens and displays, these colours must only be used as a guide.
technical information
essential parts
These are the main sections of the classic conservatory roof, labelled with their component parts. Click each image to see all associated parts. (opens in a new window)
Note: For ALL individual parts of the roof please download the Parts Document. For measurements, angles, and other technical data view the Technical Spec Document

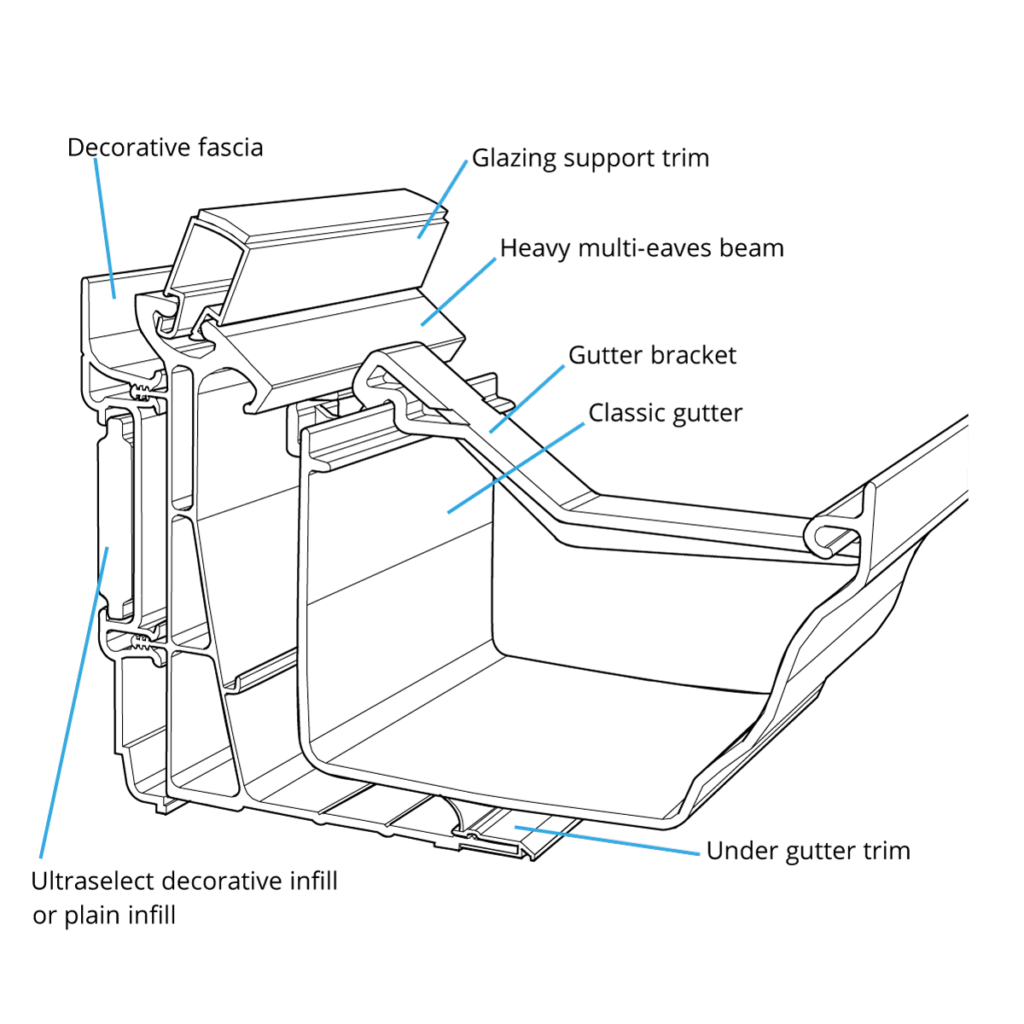

EAVES BEAM
Attached to the top of the side frames it is the starting point of any roof system

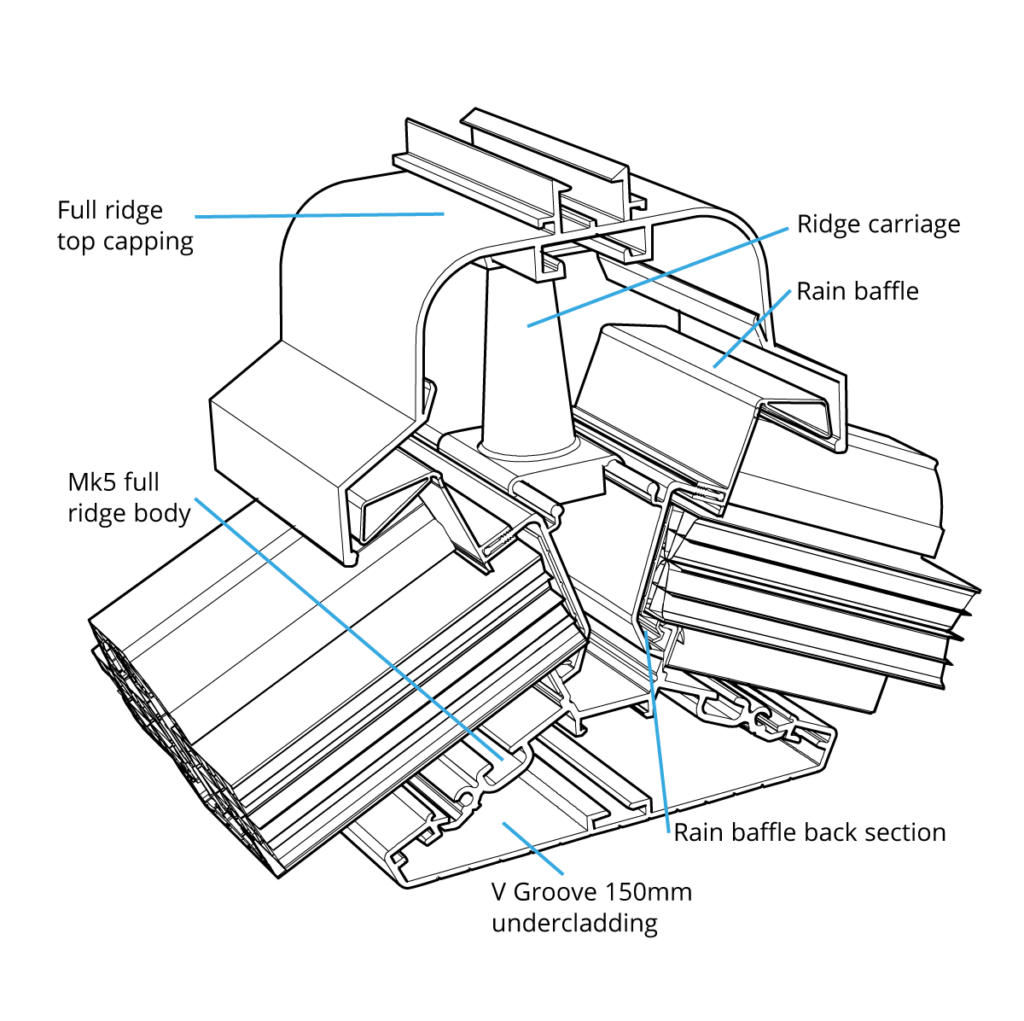

RIDGE
The ridge takes the initial structural loads and is the lynch pin of the roof system

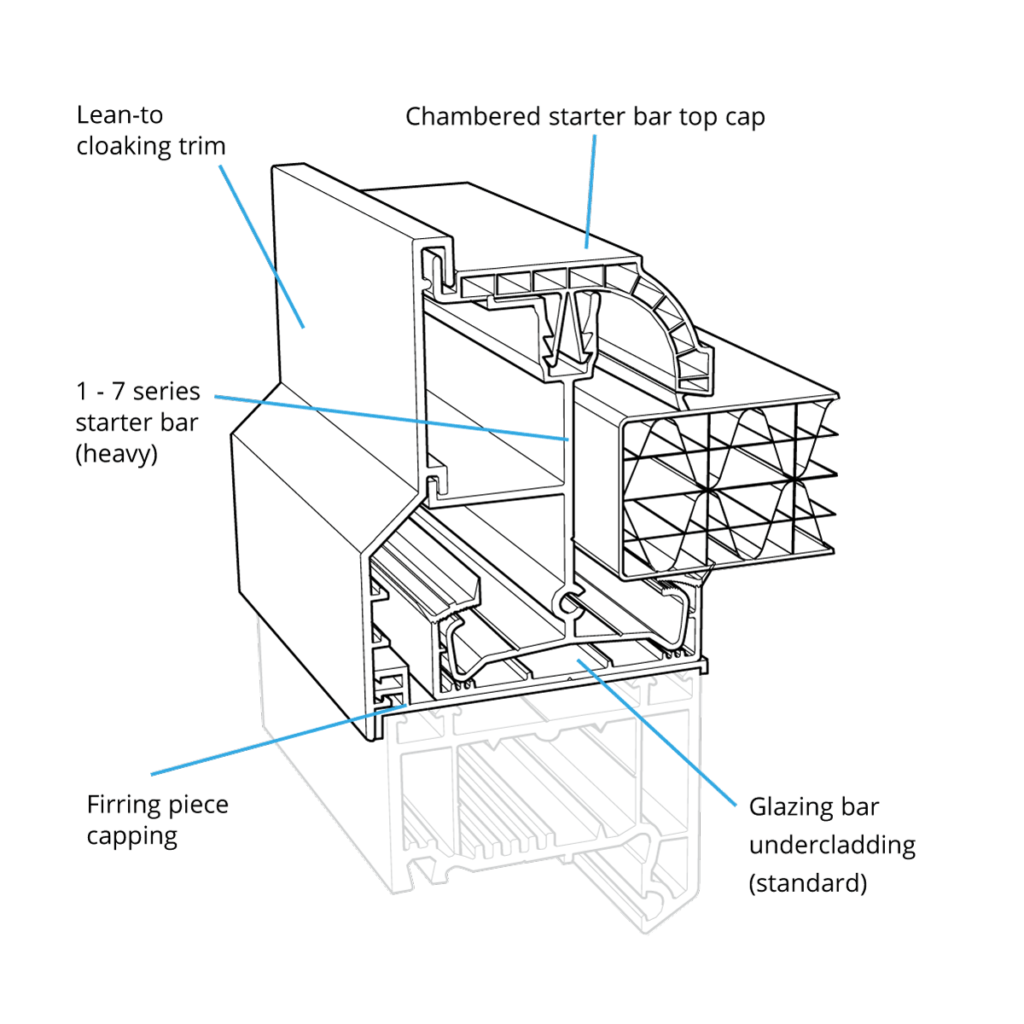

Glazing Bars
Glazing bars are the members that retain the glazing material and take structural loads down to the eaves

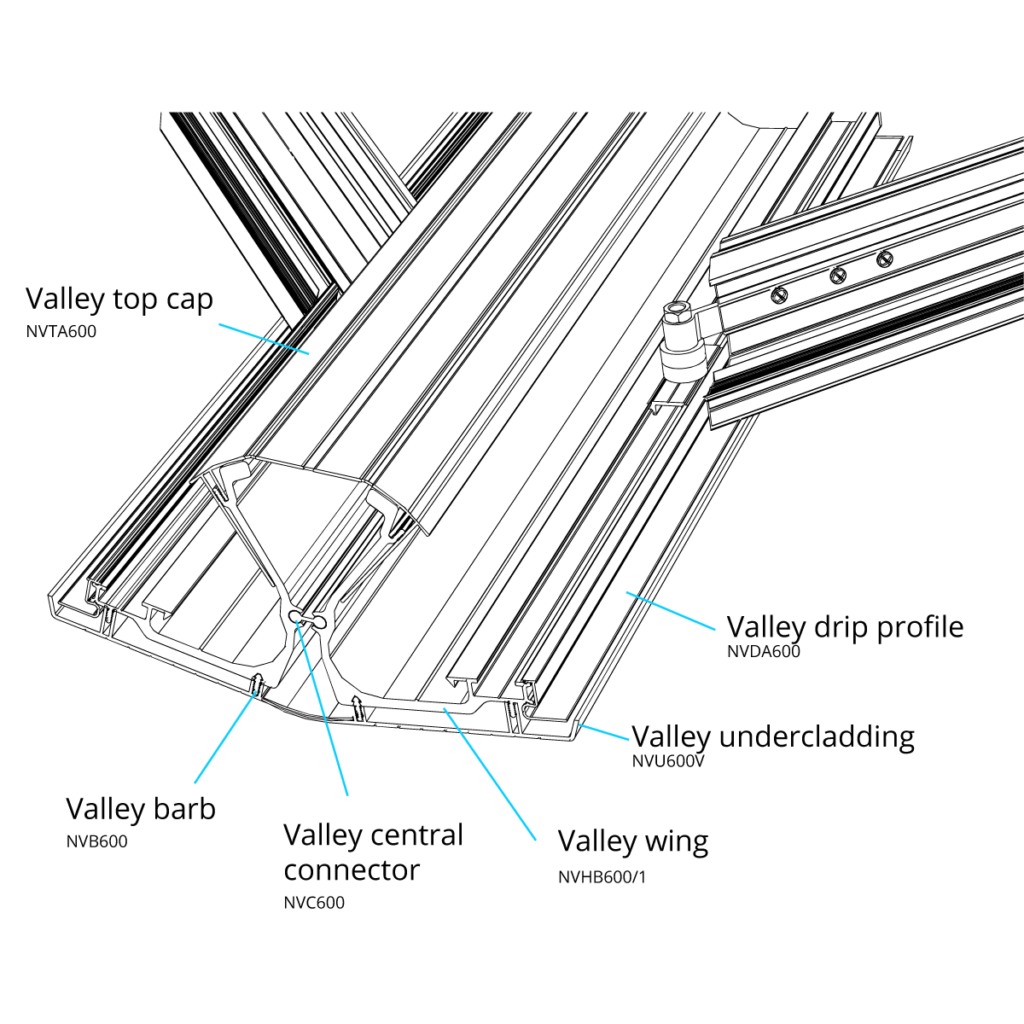

Valley
Structural member linking the ridge and eaves. Allows for more complex roof designs

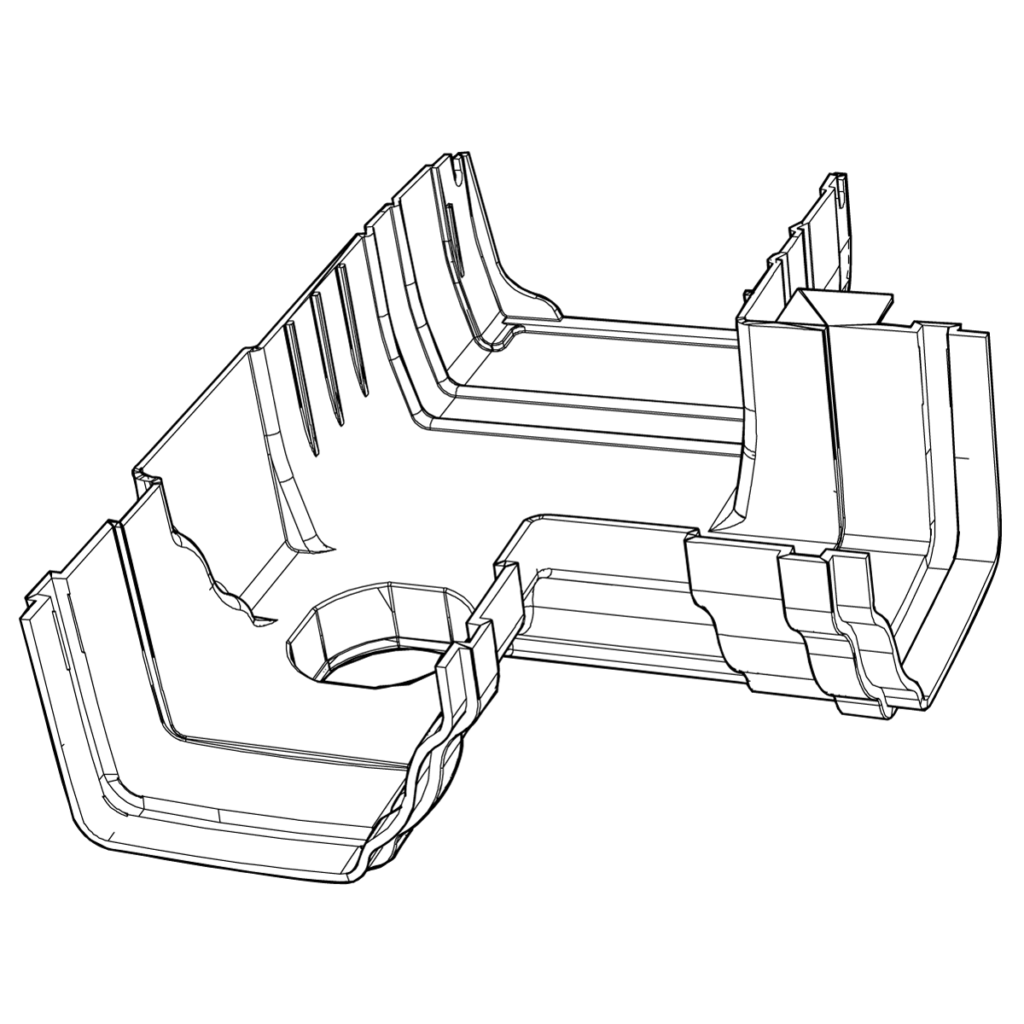

GUTTERING
Essential for rainwater dispersal

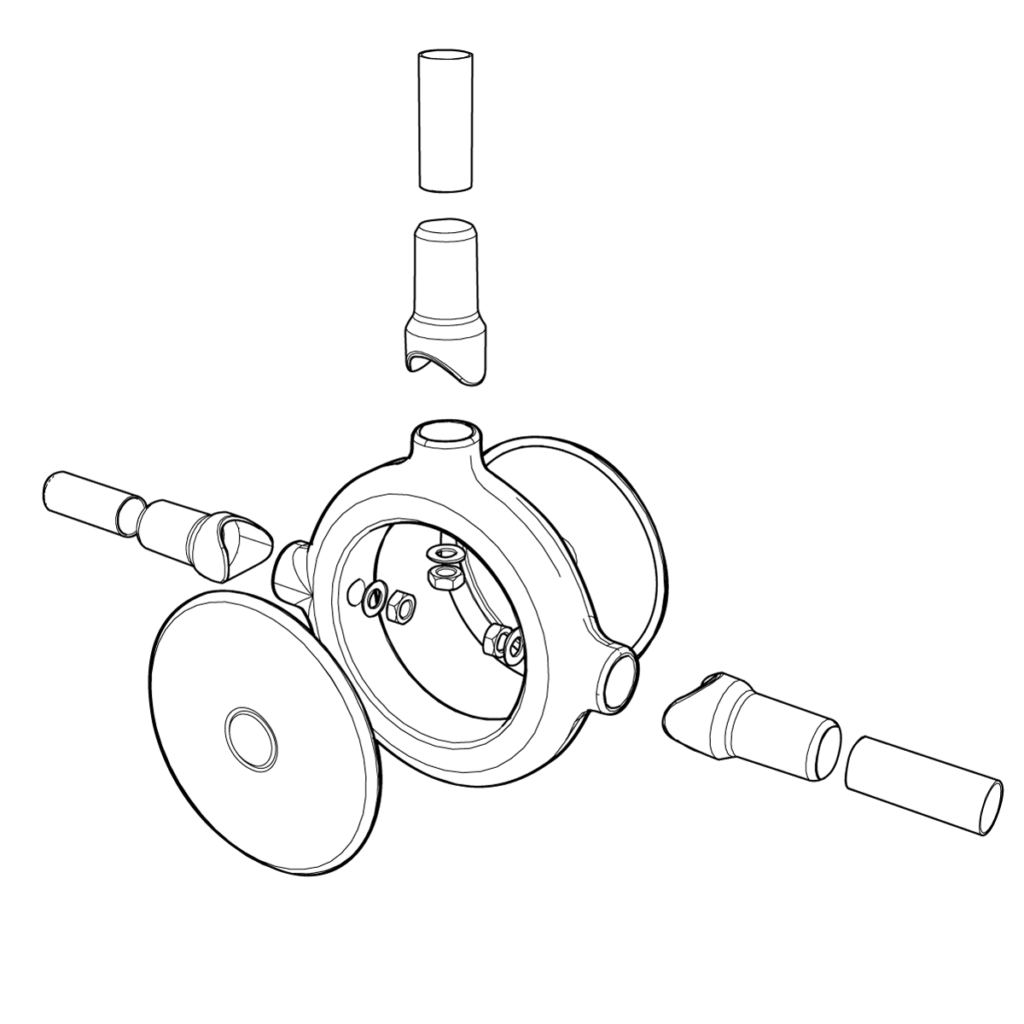

ANCILLARIES
Specific roof ancillaries
Lantern roofs
High-end, high-performance, high security
Quality as standard
Flood your home in light with ultra-secure, thermally efficient lanterns
While you get to enjoy natural light and starlit night time views, these lanterns will bring space and tranquillity to your home.
LUNA Lanterns are designed to keep heat in and would-be intruders out.
Many innovative ideas have been incorporated to create a warmer, slimmer and more secure roof lantern.
• Slim sightlines
Consistent 50mm rafter, hip and ridge sightlines maximise all light.
• Ultra low line aesthetics
Rafter and hip top caps sit close to the glazing level on the exterior.
• Refined architectural appearance
Corner and rafter end-caps run perfectly in line with the perimeter of the lantern, so no unsightly angles jut out to spoil the perfect lines of this outstanding high-performance aluminium lantern.
The ideal balance of understated refinement, contemporary looks and exacting quality standards.
Features
• Thermlock® multi-chamber thermal technology
• Deep internal bars create an ultra strong structure for spans up to 3.2 x 6m without tie bars
• Ultra low line aesthetics
• Anti-tamper screws and enclosed anti-tamper glazing
• Hardwearing powder coated aluminium inside/out
• Security tape, glass lock, and unique high security ridge end
• High performance 28mm glazing
• Co-extruded perimeter seal
• Integral LED light channel around the perimeter of the roof
• Slim, consistent 50mm rafter, hip and ridge sightlines
• Three standard powder coated colours with different internal options
• Maximum sizes up to 3.2m by an impressive 6m long, all set at a 25˚ pitch and all weather rated for the whole of the UK**.
**Rated for a snow load of 1.2 KN/m2. Covering the whole of the UK up to 200m altitude.
Lantern configurations
Security
Innovative construction of the LUNA lantern eliminates the security weaknesses of traditional lantern designs.
Features such as anti-tamper screws, enclosed anti-tamper glazing, security tape and glass lock, alongside a unique high security ridge end, ensure there isn’t an easy way to enter your property via your lantern.
28mm glazing also allows acoustic dampening glass to be fitted if required and for extra security, choose laminated glass and upgrade to a Secured by Design (SBD) option.
All of these innovative features combine to make this the UK’s most secure aluminium lantern roof*.
Thermal innovation
Thermlock® technology helps keep you comfortable and heating bills lower
The exceptional thermal performance comes from the innovative Thermlock®; a multi-chamber technology insulating against the worst of the UK weather.
High performance 28mm glazing means our lantern roofs offer class-leading thermal performance, far superior to traditional polyamide systems.
A unique co-extruded perimeter seal also ensures draughts and rain are kept outside.
28mm glazing also allows acoustic dampening glass to be fitted if required.
COLOURSSTANDARD CLASSIC ROOF COLOURS. RAL COLOURS ARE AVAILABLE
white
RAL: 9003
sage green
BSI: BS14C35*
cream
RAL: 9001
Please note: Due to variances of screens and displays, these colours must only be used as a guide.
CHECK OUT THE FIRST LUNA BROCHUREThe brand new brochure detailing all LUNA ROOF products
