RAYA WINDOWSUPVC CASEMENT • HERITAGE VS • TILT & TURN
Perfect for your next project
RAYA windows offer a range of stylish energy efficient window systems to compliment any home. All offer a high gloss finish, slim sight lines and the highest possible thermal and acoustic performance.
Our uPVC window systems include; casement windows, bay windows, tilt & turn windows and heritage style sliding sash windows (vertical sliders). All of these styles no longer have to be just white – choose from a large selection of coloured windows.
Not a customer?
Click below to apply.
Or click here to find out more about us.
The benefits
Enhanced security
RAYA windows and doors are tested to the highest security standards giving you an added level of security to your home and family.
All RAYA fabrications are part of the Secured by Design police initiative which endeavours to design-in security elements at an early stage of the production.
Quality and performance
RAYA window systems have been tested in accordance with and meet the highest requirements of BS7412 for the standard of a manufactured window.
Energy efficient windows
All RAYA window systems can achieve a WER A rating – the highest energy rating, making your home more efficient and save money on your heating bills.
Weather performance
Independently tested RAYA windows and doors achieve the highest ratings (PAS 24) for wind, water and air; protecting your home from the elements.
Acoustic performance
Double glazing is well known for its ability to reduce outdoor noise levels and new windows manufactured from RAYA profile can help bring down the noise coming into your home by as much as a half.
Low maintenance
RAYA windows contain a unique compound that guarantees a smooth, high gloss finish meaning that your new windows retain their pristine appearance for years to come.
Features and options of RAYA uPVC windows
• Interchangeable profiles allow for multiple style combinations to be manufactured
• Fully sculptured detail for enhanced style to both modern and traditional properties
• Optional features include run through sash horn, clip-on Georgian bars and various glazing bead style options
• Various combinations of fixed and opening sections make this window extremely versatile
• Corrosion resistant Austenitic screws made from 302-grade Austenite stainless steel; intrinsically soft, making it perfect for use in our uPVC windows.
70mm deep window and door system
Multi-chamber profile
Integral gasket
Easy glazing
3mm outer wall thickness
Choice of frame styles: sculptured or chamfered
Hardware fixed into steel
Central eurogroove position
Steel reinforcement – larger sized elements
Up to 44mm glazing
standard COLOURSSTOCK COLOURS AND FOILS
Colour
simply white
RAL:9010
clotted cream
RAL:9001
Agate/pearl grey
RAL:7038
Chartwell green
woodgrain
Turner Oak
Irish Oak
golden Oak
rosewood
Mahogany**
black & grey
Available on white substrate
Midnight Black*
RAL:9005
Black-Brown
RAL:8022
Elephant Grey
RAL:7001
These greys are available on grey substrate
Anthracite Grey (smooth)
RAL:7016
Anthracite Grey (grained)
RAL:7016
Slate Grey (smooth)
RAL:7015
Slate Grey (grained)
RAL:7015
Stock colours and foils. *Only availble on bevel/chamfered. †Only available on white. ††Available on grey.
configurations
raya upvc products:

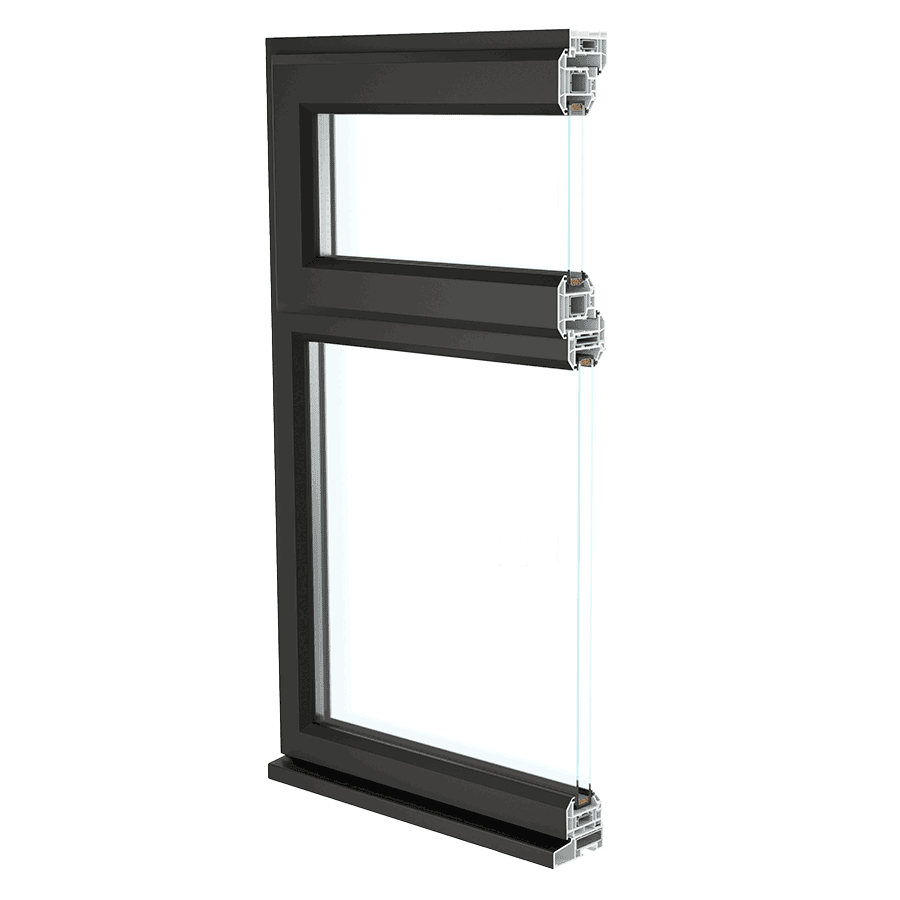

casement windows
Featuring fixed panes, top-opening fanlights and side-opening lights, RAYA casement windows can be combined to create an almost limitless range of styles.
A versatile window in chamfered and sculptured options
The Rehau Total 70 system is available with a co-extruded profile made up of 75% post-consumer waste. It boasts severe weather performance credentials and unparalleled technical, thermal and noise reduction efficiency.
RAYA Chamfered
Colour: Black
Raya Chamfered
The most popular system. This chamfered (also know as bevelled) is simple yet elegant, helping to create contemporary frames.
System: Rehau Total 70c
raya scupltured
colour: turner oak
Raya Sculptured
A sympathetic replacement for timber carries style for both modern and traditional properties. A decorative sculptured edge will restore character to older properties.
System: Rehau Total 70s

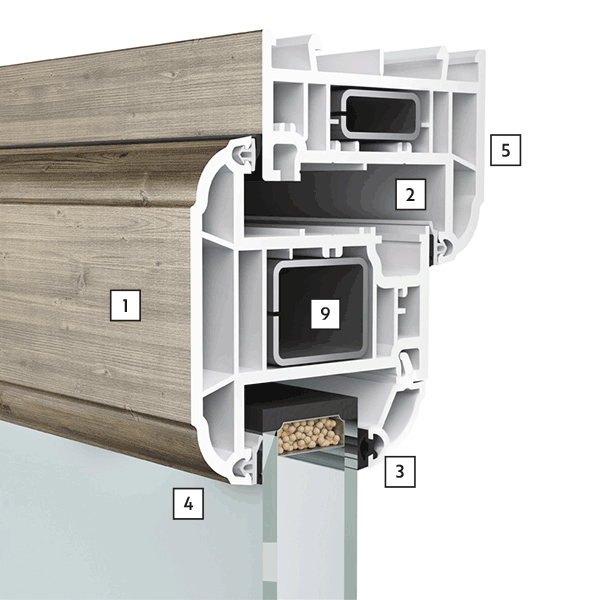

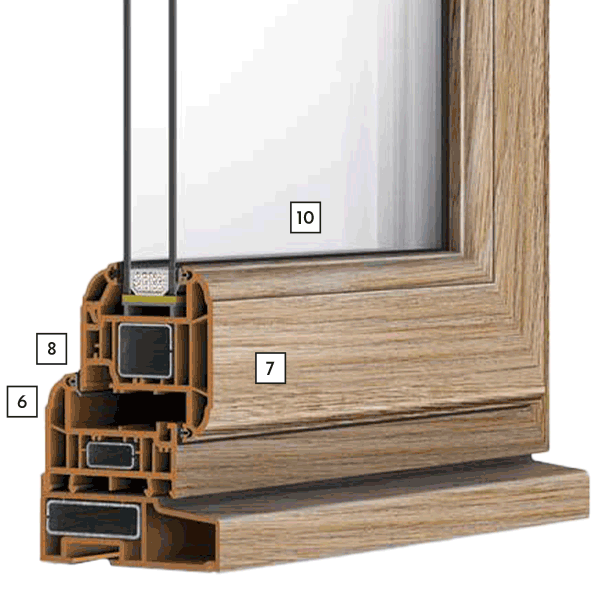

design FEATURES
• Multi-chamber profiles: The RAYA window range includes profiles with 5 chambers for improved thermal efficiency without compromising on structural capability.
• Integral gasket: RAYA windows are supplied with gaskets already integrated into the profile.
• Ancillary profiles: A large range of ancillary profiles including sills, weather rails, head drips, baypoles, couplers and frame extensions, are compatible across the entire RAYA windows range.
• Easy glazing: RAYA’s single-leg glazing beads and retention detail guarantees on-site glazing is easy and secure when fitted.
• Surface finish: RAYA is renowned for its quality, demonstrated with a high gloss surface finish that provides a long lasting appearance with little or no maintenance.
• Larger reinforcement chamber: To allow additional strength/rigidity when necessary, a larger reinforcement chamber enables a range of galvanised steels to be inserted for optimum performance.
• Positive friction-stay location: To reduce the strain on screws and hinges, positive friction-stay location is added for improved performance.
• Hardware fixed into steel: If required, the hardware used on RAYA windows profiles can be fixed into the steel reinforcement on both sash and frame. This allows for improved technical performance and superior security levels.
Larger reinforcement chambers allow for additional strength / rigidity when necessary
Optional features include a part sculptured T sash
Ideal replacement for British timber casement windows due to 70mm depth
4mm to 44mm double or triple glazing
Wide range of styles and combinations eg. French, bay and bow windows
Can achieve U-Values of 0.8 W/m2K using the triple glazed Argon sealed units.
Complies with building regulations
raya chamfered
raya scupltured
Casement specifications
| Feature | Specification |
|---|---|
| Profile depth | 70 mm |
| Maximum window size (top hung) | 1200 x 1200 mm |
| Maximum window size (side hung) | 900 x 1500 mm |
| U Value / Thermal performance | 0.8 W/m2K |
| Max. sash weight | 40kg |
| Glass width | 28mm, 36mm or 44mm |

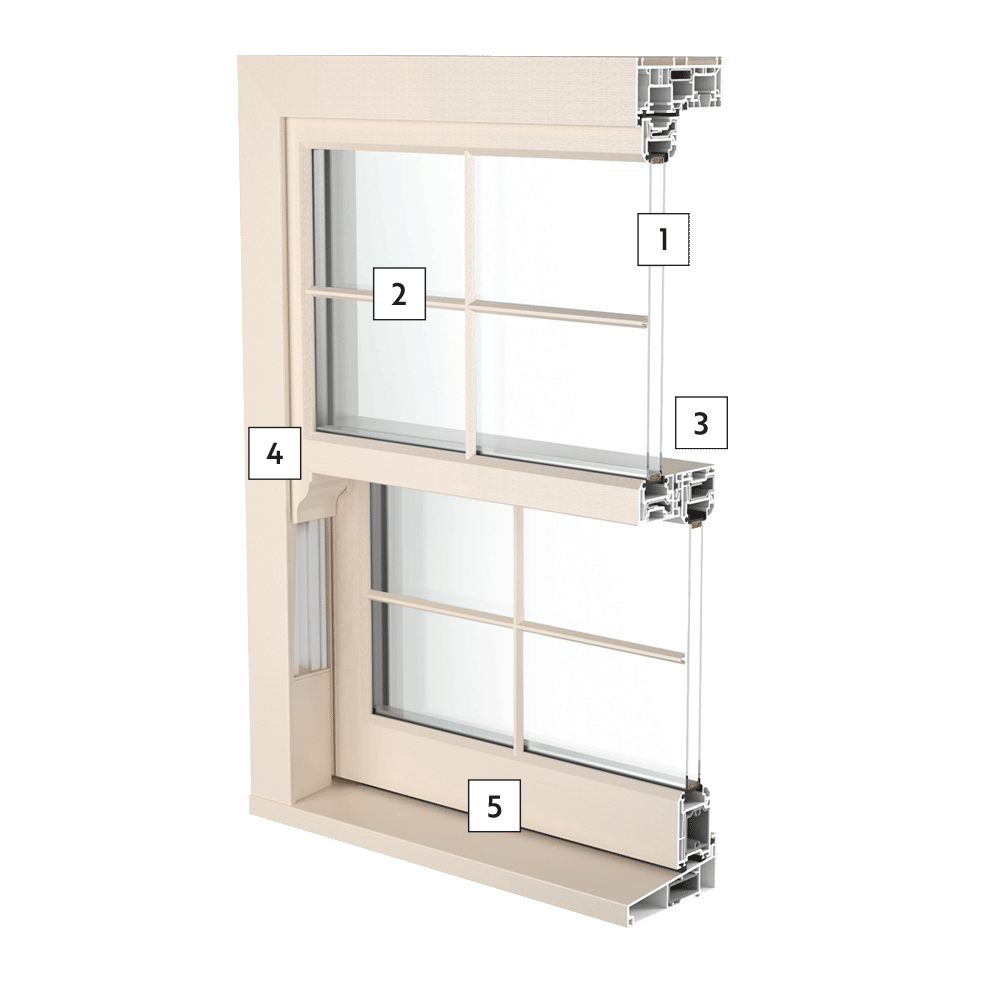

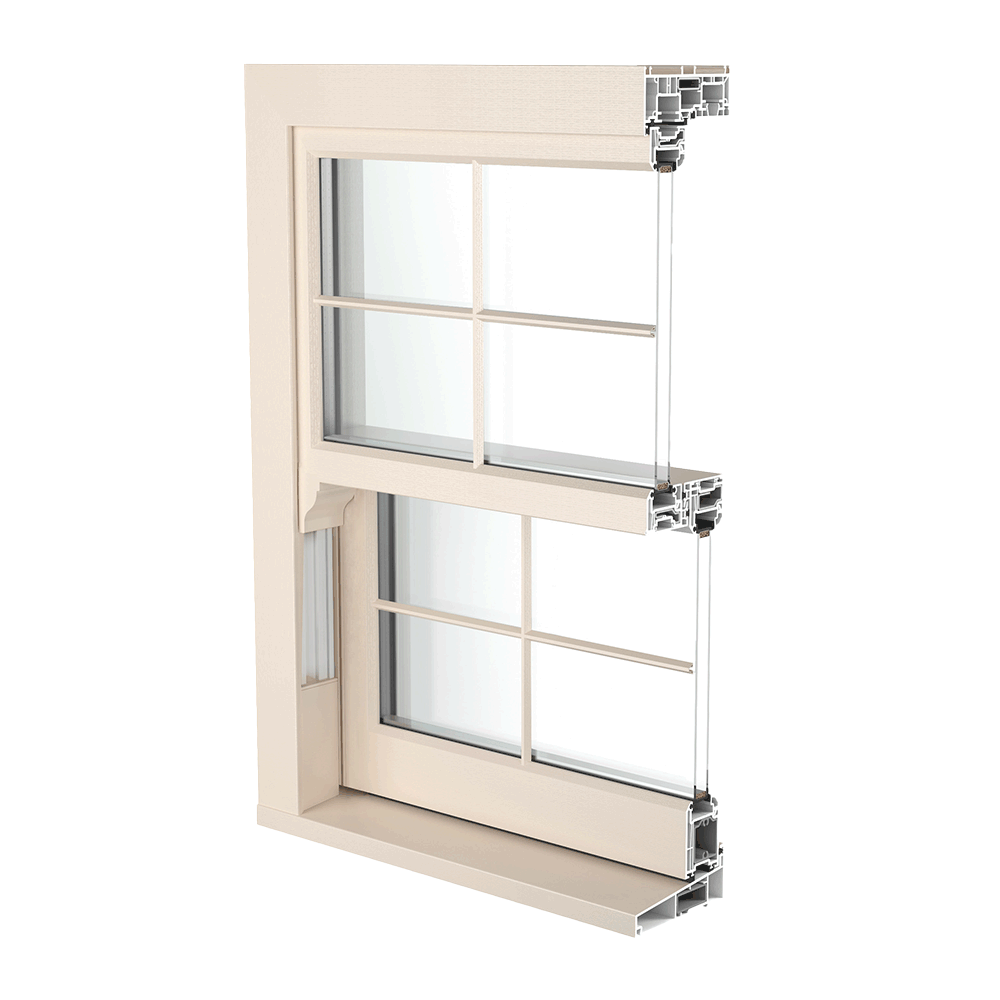

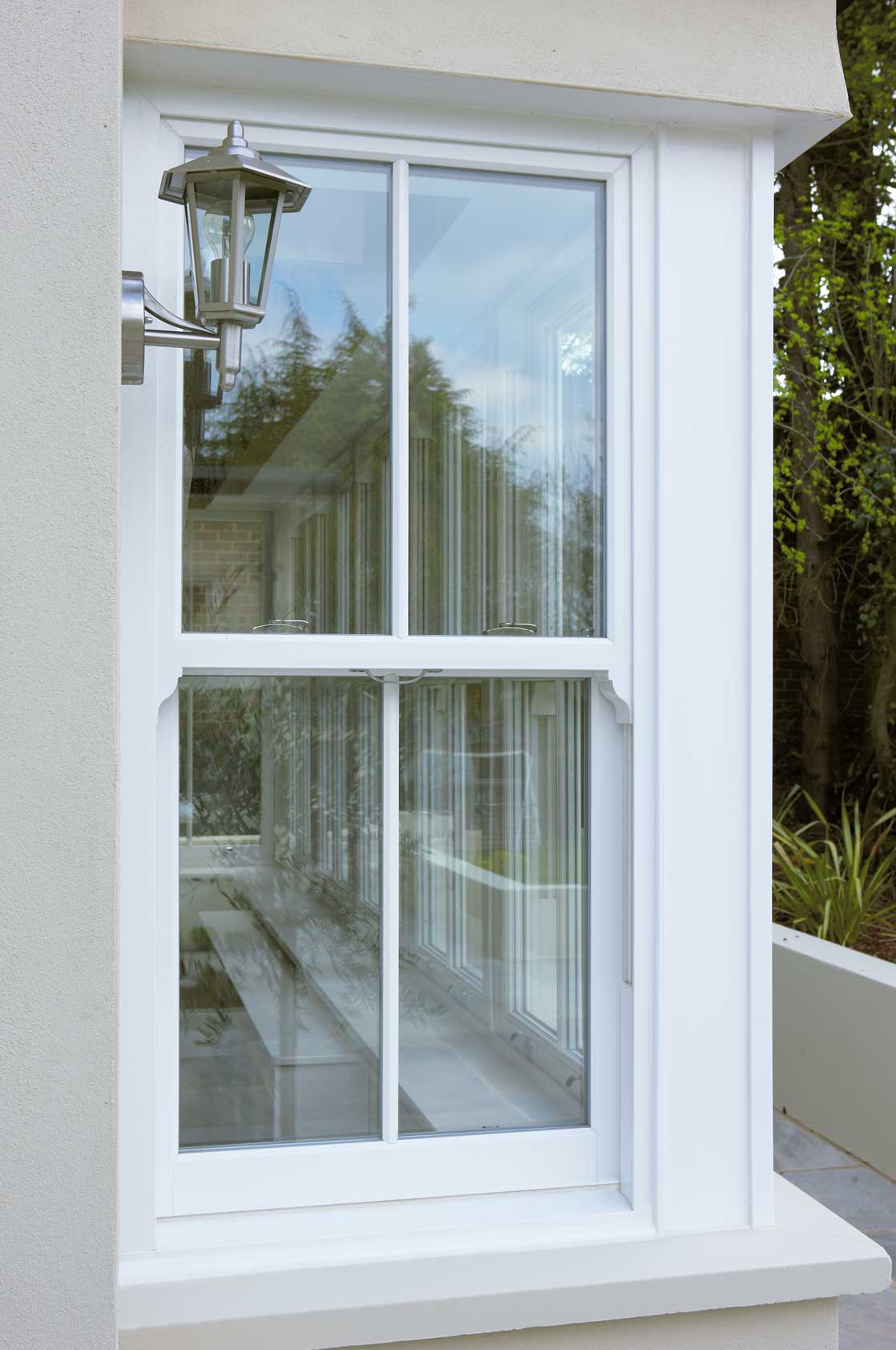

heritage vertical sliders
Period style vertical sliding windows. Superbly engineered and of exceptional quality, vertical sliding sash windows add genuine authenticity and style without sacrificing performance
Characteristics
This vertical sliding window’s deep bottom rail replicates aesthetics of traditional timber windows and can be used with either a slim-intermediate sash combination or intermediate-large sash combination.
The core of the RAYA Vertical Sliding system has been developed following extensive consultation with conservation bodies and as a result, our sliding sash windows are the most distinctive and authentic-looking uPVC sash window available in the UK.
design features
• Authentic period aesthetics
• Optional Georgian bars
• Optional sash horns
• Traditional timber sash window aesthetics
• Approved for use in UK conservation areas
• Perfect as energy-efficient replacement windows in character and period homes
• Suits Victorian, Georgian and Edwardian buildings as well as use on new builds in a traditional style
28mm glazing
Georgian or astragal bars for an authentic appearance.
Triple brush seals in the frame create a barrier against wind and air
These windows can be fully welded or comprised by mechanical construction
Deep bottom rail profile as standard

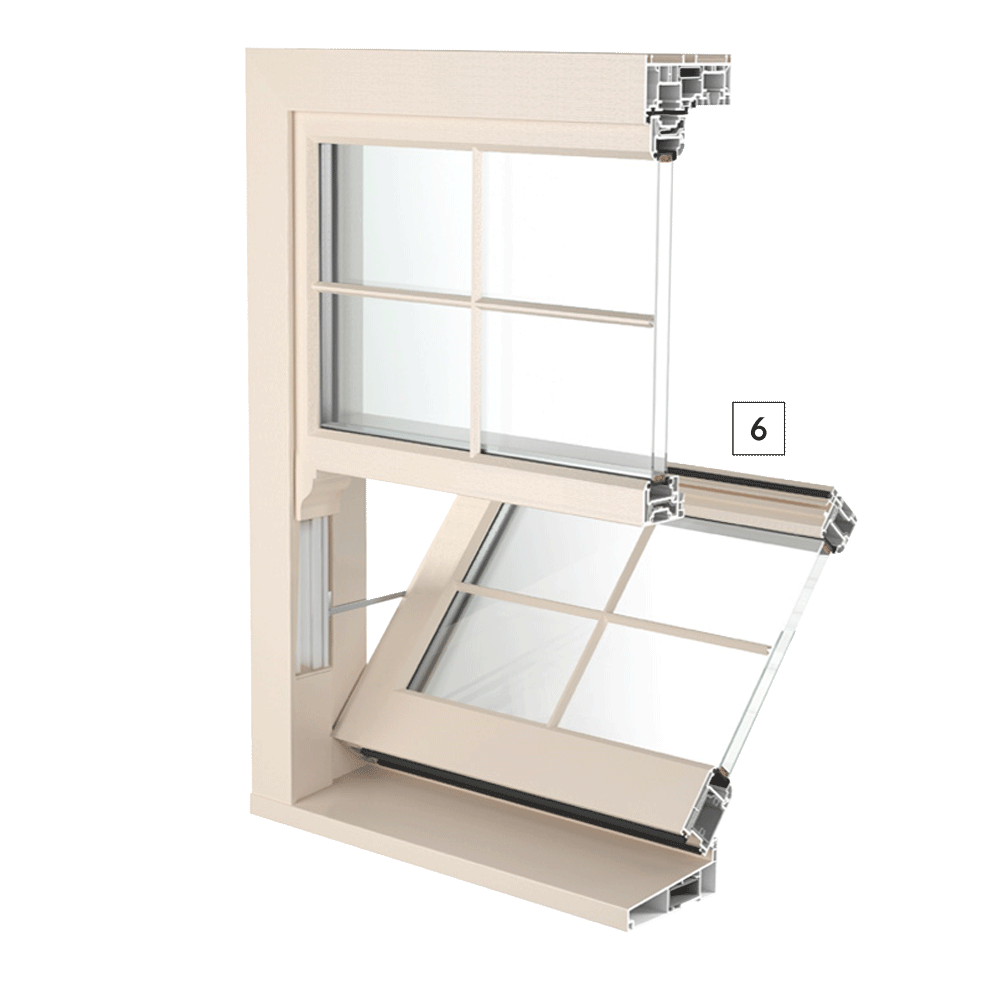

Tilt function for cleaning
Heritage vertical slider spec
| Feature | Specification |
|---|---|
| Profile depth | 137 mm |
| Maximum window size | 1500 x 3000mm |
| Thermal performance | Exceeds 1.1 W/m2K |
| Max. sash weight | 50kg |
| Glass width | 24mm & 28mm |
| Further options | Georgian bars |
| Fixed or run through sash horns | |
| Sliding latches allowing for tilting |
Tilt and turn windows
functional alternative to opening out windows creating the look and feel of the continent.
RAYA Tilt and turn windows offer you simplicity and versatility – providing a choice of styles which have the option of the window tilting inwards or being fully opened inwards. This flexibility provides secure ventilation and ease of cleaning from inside.
Tilt and turn windows are the ideal solution where there is restricted space outside making outward opening a hazard as well as providing an effective fire escape.
design features
• Secure ventilation
• Easy cleaning
• Ideal for restricted space
• An effective fire escape
• Secure ventilation and ease of cleaning
• 16mm integrated Eurogroove allowing for hardware options
• Can tilt for minor ventilation or turn and open to feel the full benefits
• Inward opening for effective fire escape and where restricted outside space makes outward opening hazardous
• Slimmer sightlines for enhanced aesthetic appeal
16mm integrated Eurogroove allowing for hardware options
Can tilt for minor ventilation or turn and open to feel the full benefits
Inward opening for effective fire escape and where restricted outside space makes outward opening hazardous
Slimmer sightlines for enhanced aesthetic appeal
Tilt & Turn specifications
| Feature | Specification |
|---|---|
| Profile depth | 70 mm |
| Maximum window size (side hung) | 1000 x 2200 mm |
| Thermal performance | 0.8 W/m2K |
| Max. sash weight | 100kg |
| Glass width | Up to 44mm |
Slinova Patio Door
Outstanding performance and design for modern, energy-efficient homes.
Slinova features
Maximise natural light with a large glazed area. Sliding door has incredible strength and stability.
• 80mm frame depth
• 82mm mullion
• Larger sliding part and glass surfaces increase airflow and circulation
• Easy operation, low maintenance, durable and easy to clean
• Adds a sense of space to any room
Colours
• A wide range of colours
• The possibility of different internal and external colours
• A fully veneered frame rebate.
HIGH SECURITY
Tested to the highest security standards
80mm frame depth
Specially designed discreet hardware conceals the locks completely within the sash
Standard 6-point locking mechanism
Multi-point locking system with aluminium anodized keep for better aesthetics.
3-star lock cylnder
Stainless steel hooks for extra security

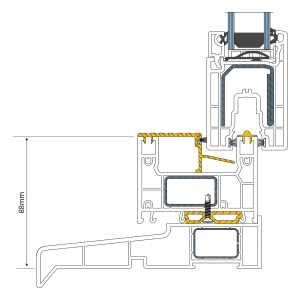

SLINOVA
THRESHOLD WITH SILL

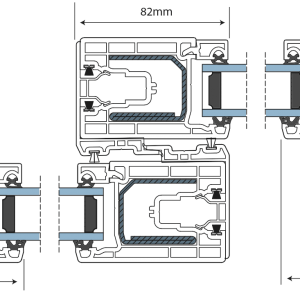

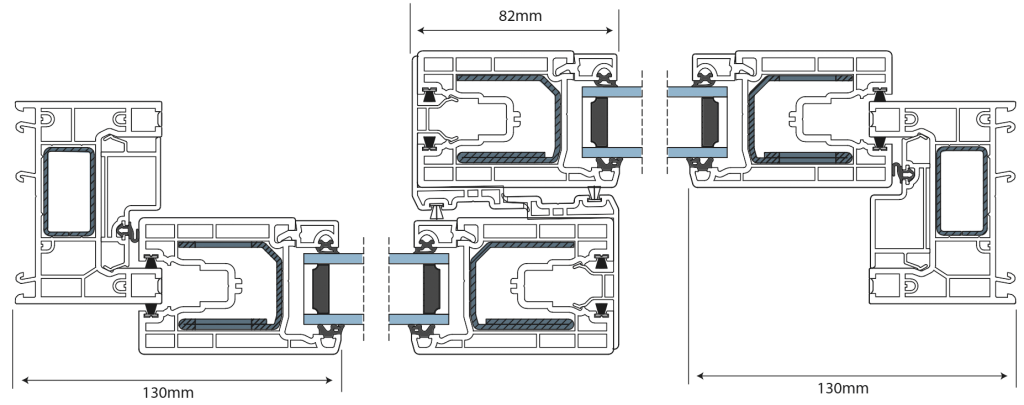

SLINOVA
HORIZONTAL SECTION

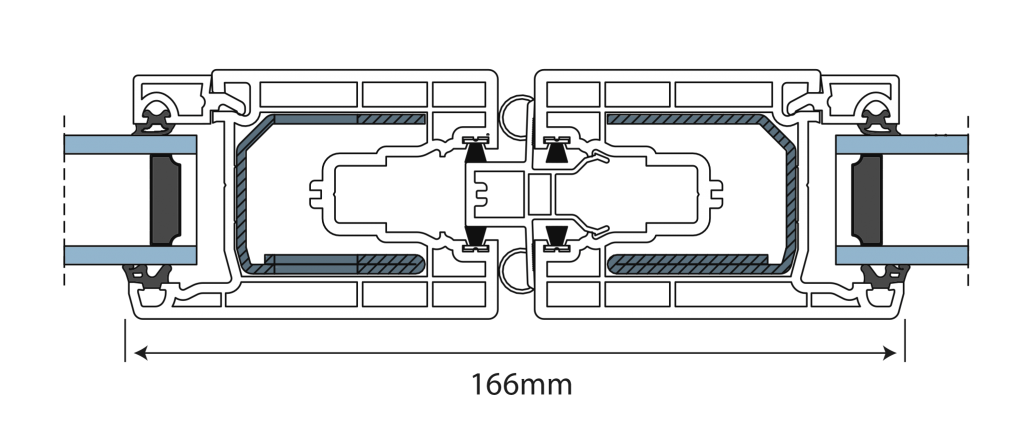

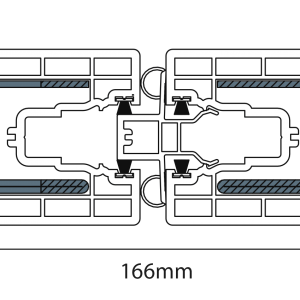

SLINOVA
3-4 PANE LOCKING DETAIL

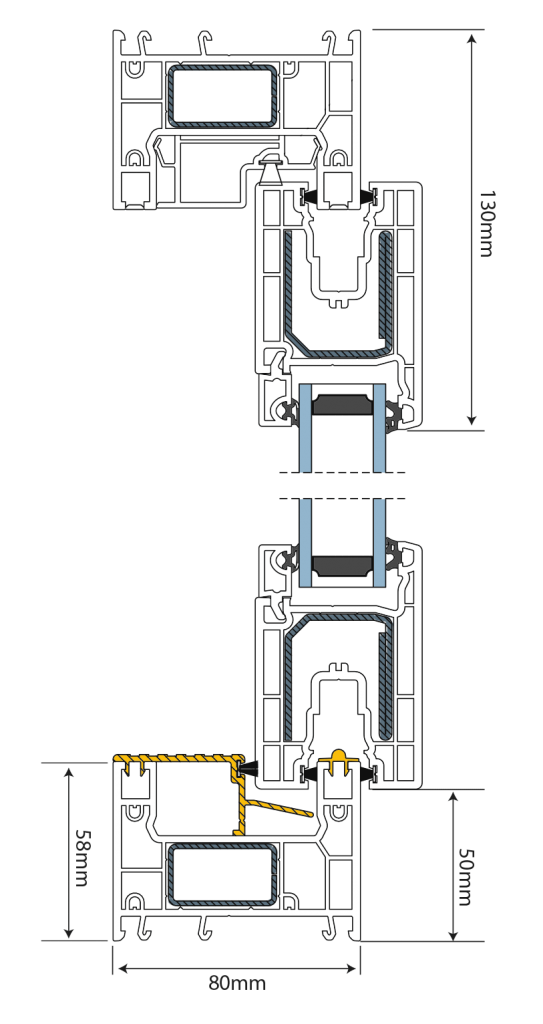

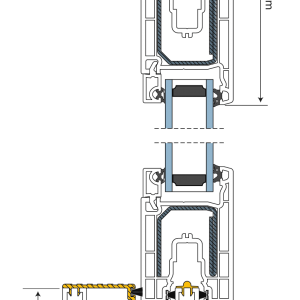

SLINOVA
VERTICAL SECTION
Slinova Patio Door specifications
| Feature | Description |
|---|---|
| Frame depth | Double frame 80mm, Triple frame 146mm |
| Sash depth | 54mm |
| Assembly | Welded sash, welded frame or mechanical joint frame only |
| Material | REHAU EcoPuls PVC profile, with steel reinforcement according to the system manufacturer's specifications Sash and frame with a minimum of 40% to 75% recycled PVC, Vinyl Plus certification |
| Seals | The seal between the door frame and the sash is ensured by two circumferential brush seals The glazing seal in the sash is welded in the corner area |
| Maximum glass thickness | 32mm |
| Maximum sash weight | Up to 150kg |
| Maximum dimensions (W/H) | 4 m x 2.4m |
| Wind load resistance | Up to class B2/C1 according to DIN EN 12210 |
| Rain permeability | Up to class 7A according to DIN EN 12208 |
| Air permeability | Up to class 4 according to DIN EN 12207 |
| Sound reduction | Up to Rw,P - 33dB |
DOWNLOADS
VIEW THE LATEST
RAYA BROCHUREThe brand new brochure detailing all RAYA UPVC products
The Rehau Promise
Environmental Sustainability
As a conscientious extruder, Rehau employ stringent measures to uphold the sustainability of their product; Previously, only virgin PVC material was used to create window profiles.
Co-extrusion adds a second material and combines the best characteristics of both materials. Which keeps valuable raw materials in the process when recycled after the initial product life cycle.
To find out more on how efficiently Rehau manufacture and recycle plastics used in windows and their views on sustainability please click below.
Recycling
As a manufacturer, REHAU is conscious of the impact of their actions have on people and the environment. The use of recycled materials is one of REHAU’s strategic objectives and we are committed in supporting that objective by leading change in attitudes and accessibility of recycling.
