AEON FLUSH WINDOWSr2 • r7 • r9 • RIO

What is AEON?

A brand to cover all our flush window products conceived from the belief in our superior manufacturing.

AEON is the suite of flush casement products we manufacture from Residence Collection and Rehau systems; R9, R2, R7, and Rio.

It’s the same profile we have used for years, and the same system you are already installing from us.

Not a customer?

Click below to apply.
Or click here to find out more about us.

The benefits

A rating for Energy efficiency

Choosing Aeon helps your home to become more efficient and save money on your heating bills.

Enhanced Security

AEON windows are PAS24 security accredited which gives you an added level of security to your home and family.

Weather Performance

Independently tested AEON RIO windows and doors achieve the highest ratings (PAS 24) for wind, water and air; protecting your home from the elements.

Virtually maintenance free

Timber windows require annual maintenance to ensure they are kept looking good – AEON flush windows need only a simple wipe so you can spend more time doing what
you love.

Acoustic performance

Double glazing is well known for its ability to reduce outdoor noise levels and new windows manufactured from RAYA profile can help bring down the noise levels in your home by as much as a half.

The features of AEON flush windows

The Aeon range has an amazing amount of features and options. If you can’t find what you’re looking for below, that doesn’t mean it isn’t available; get in touch to talk through your options.

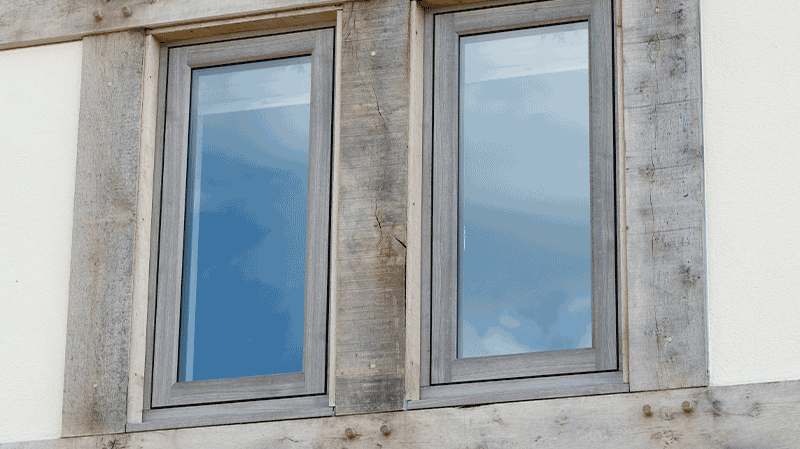

real timber look

Traditional timber aesthetics in a modern uPVC.

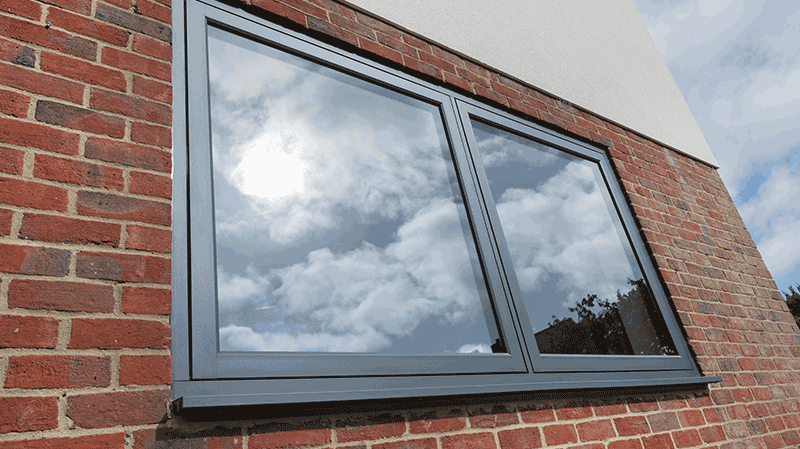

Contemporary style

Styling and features that are usually only found on aluminium products

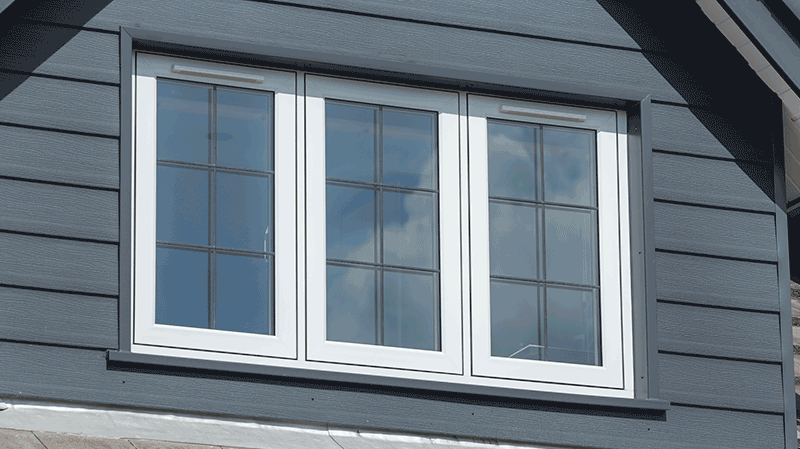

Equal SightLines

A flush sash exterior enables all glass sight-lines to be perfectly equal.

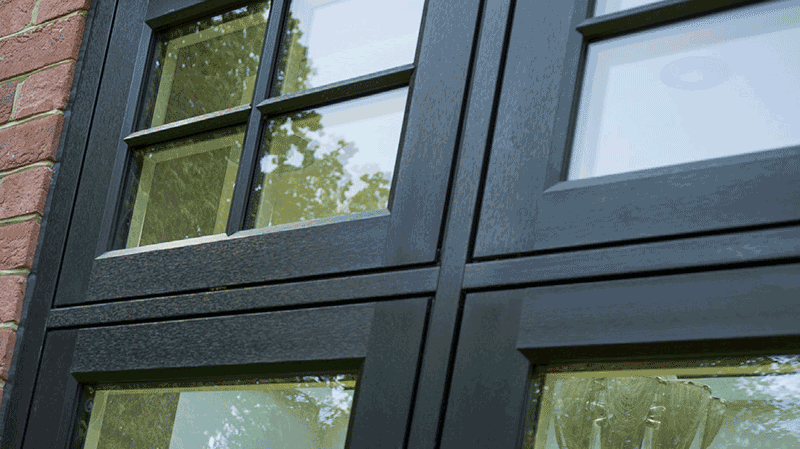

thermal efficiency

6, 7, or 9 chambered profiles keeps thermal transference to an absolute minimum.

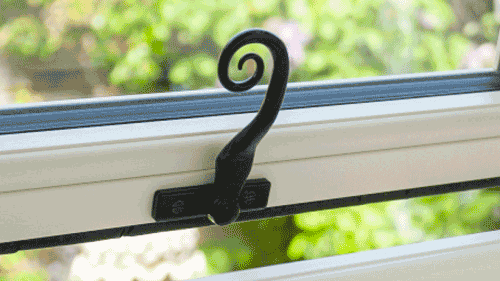

Premium Hardware

Finish the project perfectly – comes in 9 colours

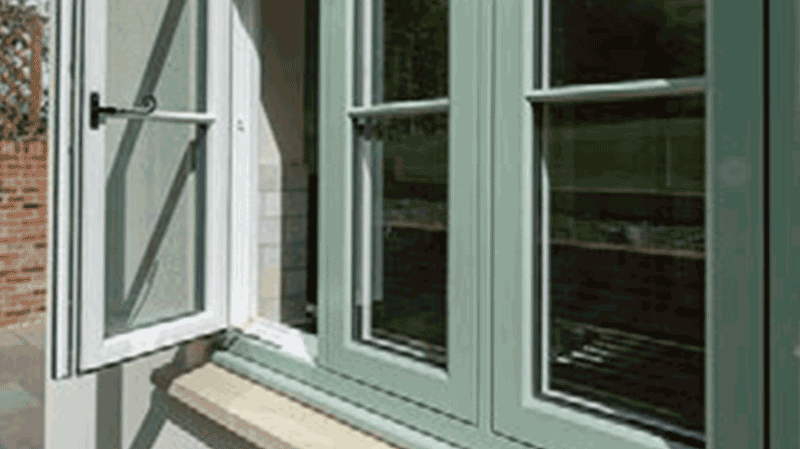

Colour choice

Up to 13 colours available all with a close RAL code to match other features

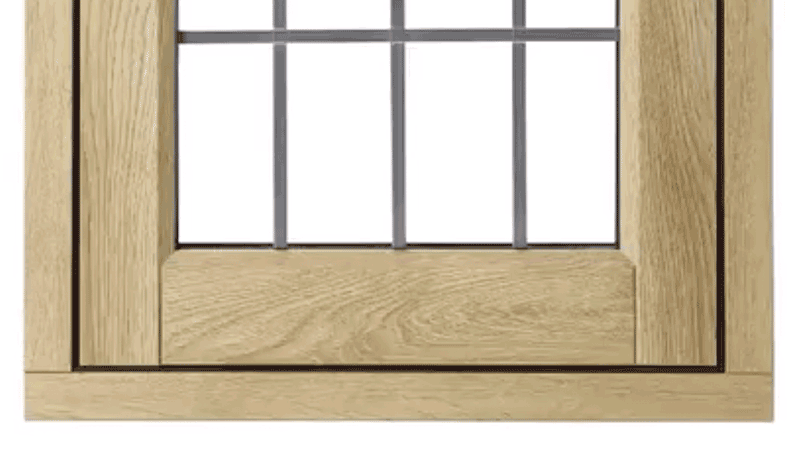

deep bottom rail

For traditional looks, this flush sash has a deeper bottom part of the sash.

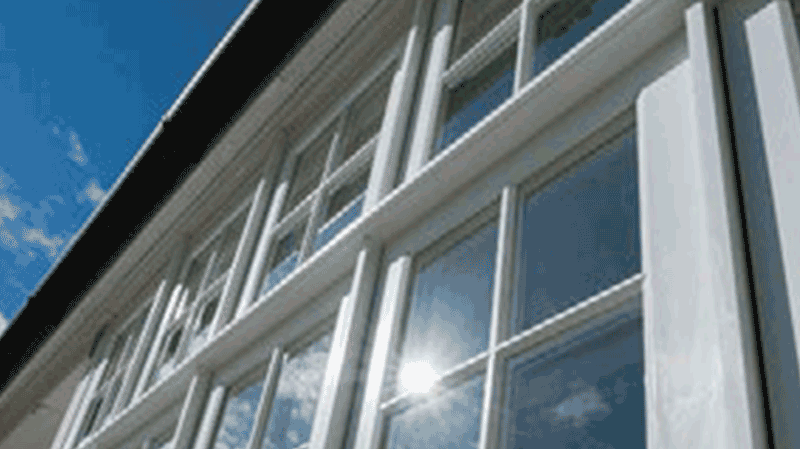

weather bar

Replicate a feature of older windows. A raised horizontal moulding to shed dripping water and to increase the strength of the mullion.

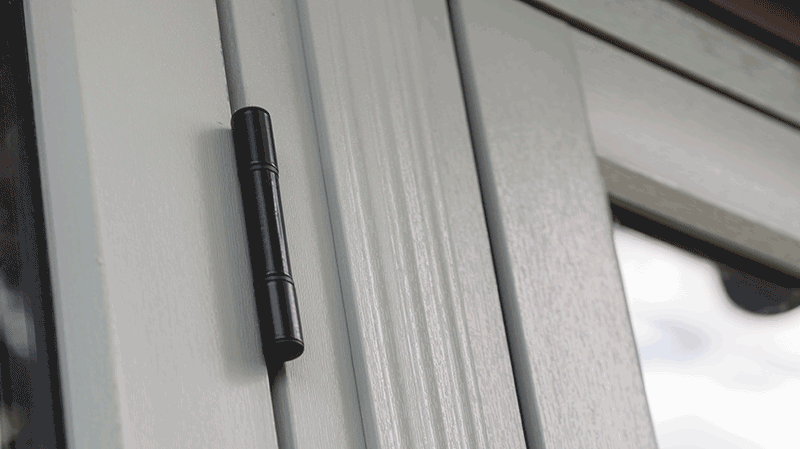

Butt hinges

Retaining original timber aesthetics or create a brand new look. Choose from working butt hinges or dummy butt hinges.

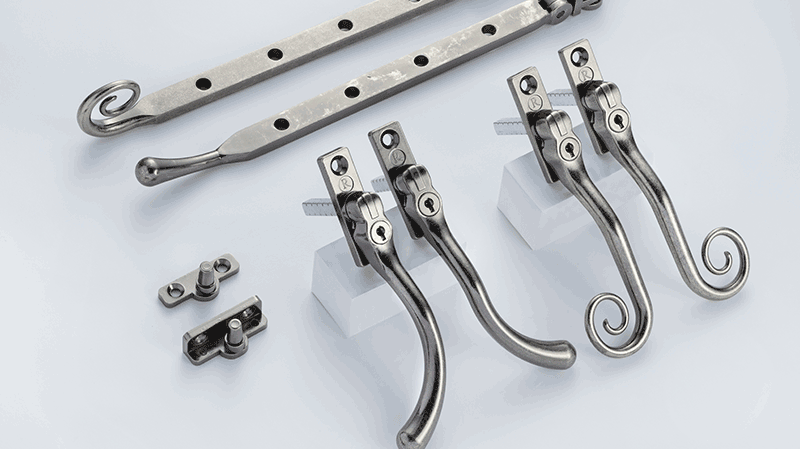

handles & stays

Monkey tail or peardrop handles, available in nine colours, for period replacement

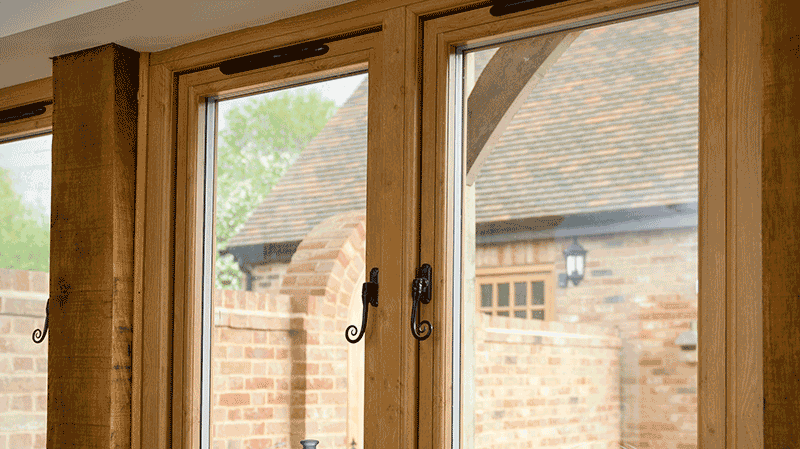

decorative inside

Externally flush with a decoratively styled internal sash and frame

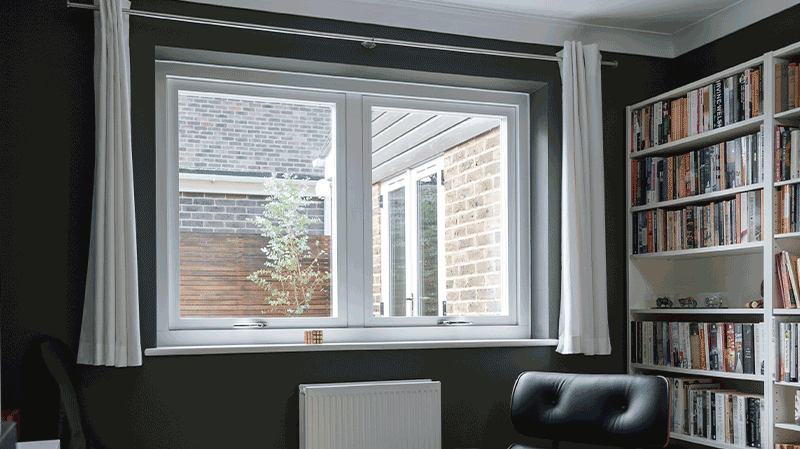

flush both sides

For an authentic flush look externally & internally

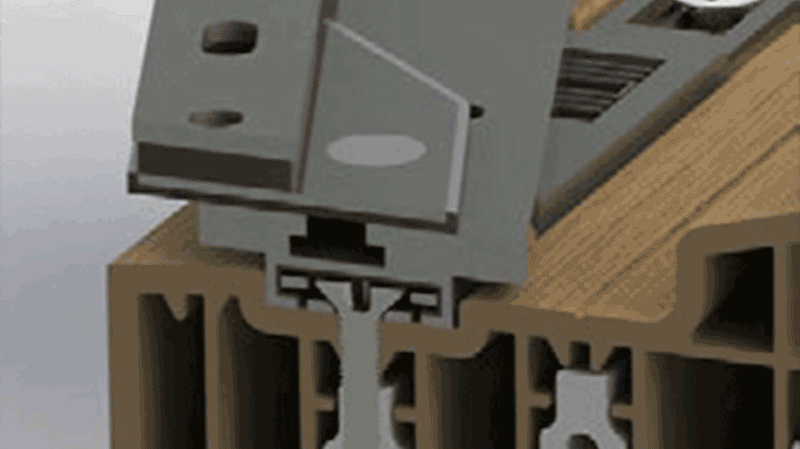

Lock & Hinge Retention

Superior screw retention reinforcements mean locks and hinges are secured firmly.

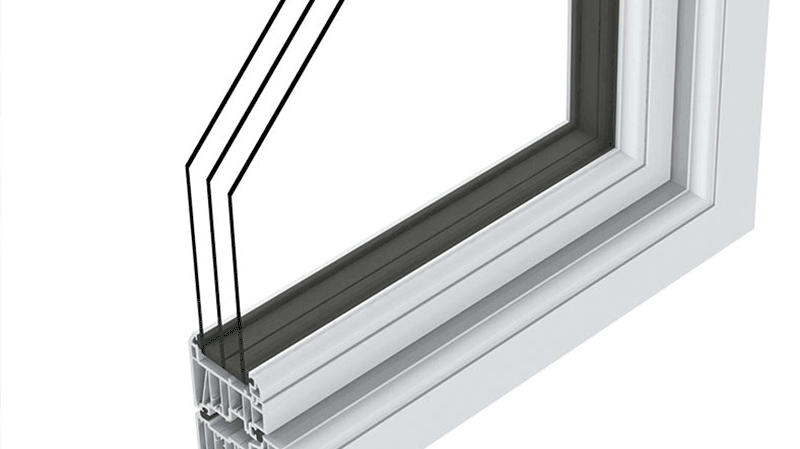

Triple-glazing

Specifically designed to accommodate the additional weight of triple glazed units.

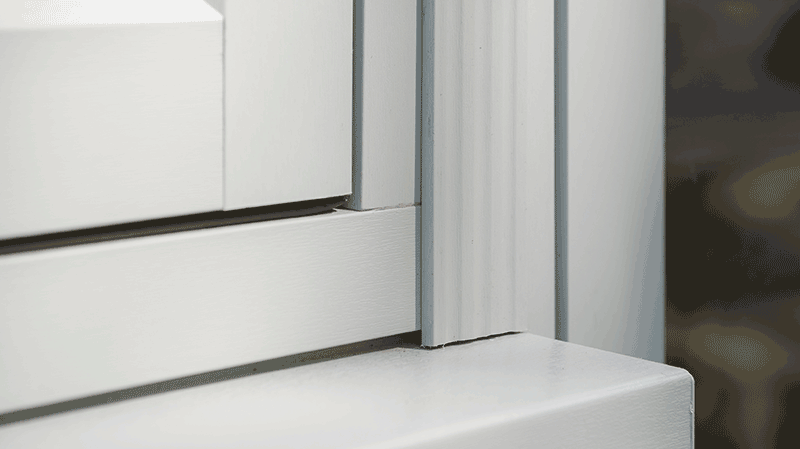

multiple jointing choice

For the complete look; butt-welded, mitred or mechanical joint fabrication:

Please note: Options, colours and hardware are dependent on the chosen system. Not all options can be chosen for the same window order.

AEON FLUSH WINDOW BROCHURE

AEON flush window hardware

R9 authentic flush

100mm period uPVC flush casement

Designed to authentically replicate 19th Century timber designs, featuring an elegant flush exterior and decorative interior.

Ideally suited to replacement of windows and doors in period properties, including those in many conservation areas.

R9 profile

view: outside

R9 profile

view:inside

R9 Features

•  100mm frame depth

•  9 thermally-efficient chambers

•  Always decorative internally

•  Choice of flush or storm externally

•  28mm double-glazed and 44mm triple glazing options

•  WER A++

•  U-Values as low as 0.8W/m2K

•  Ultra-thick CEN A wall thickness provides additional screw retention

•  PAS24 and Part Q building regulations approved

•  Choice of 11 colours

•  Available unglazed or glass bonded

•  BS EN 6375 – 1 weather tested: Exposure Category of 1600; Class 3 Air Permeability Rating (600pa); a Class 9A (600pa) Water Tightness Rating; Class C4 (1600pa), wind resistance

COLOURS

grained white

clotted cream

painswick

cotswold green

cotswold biscuit

irish oak

english oak

silvered oak

corse lawn

eclectic grey

no. 10 black

Please note: Due to variances of screens and displays, these colours must only be used as a guide.

technical informationR9 profile options and drawings

leading-edge technologies and weather sealing

The profile uses a honeycomb of nine energy-efficient chambers within a 100mm deep profile. When installed with energy efficient double- or triple-glazing units, it delivers an industry-leading U-value of 0.8W/m2K.

The R9 profile

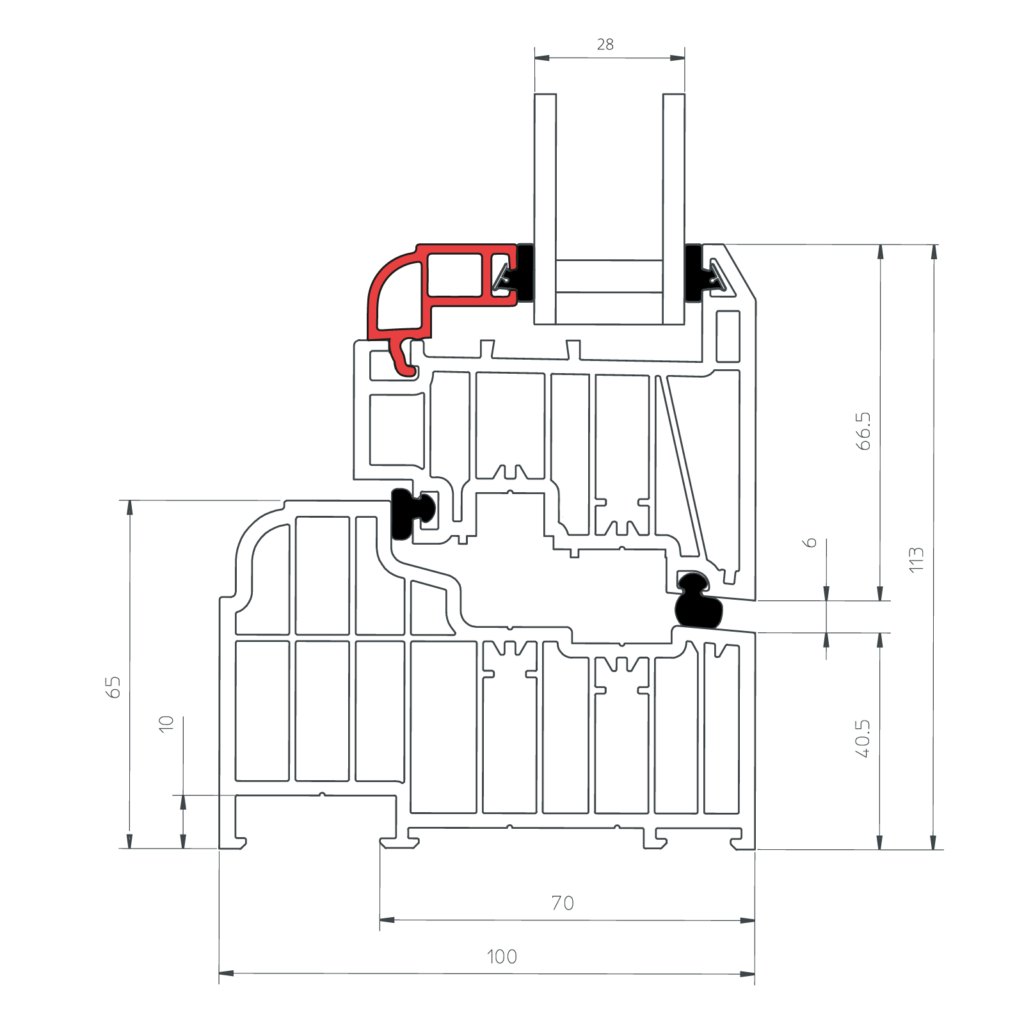

Frame and sash technical drawing

Typical options to achieve period aesthetics:

R9

Frame

R9

Transom / mullion

Sash

flush sash

sill

180mm

bead

44mm decorative

bead

28mm staff bead

bead

28mm decorative

sill

95mm stub

R2 squared flush

100mm contemporary uPVC flush casement

Achieve the look of aluminium with contemporary flush uPVC windows and modern hardware.

Equal sight-lines:

R² is built to market leading design standards. Clean lines and advanced functionality.
A unique stepped-square interior gives R² its bold and modern appearance. All glass sight-lines are perfectly equal, complementing the internal stylish square detail.

Lock & hinge retention:

R² has superior screw retention reinforcements, so locks and hinges are secured firmly into position.
Designed to accommodate the additional weight of triple glazed units, allowing heavy duty hinges to fit and operate perfectly.

The R2 Profile

The R² profile can be made into many styles including open-in windows, shaped windows, fixed windows, french windows, bay and bow windows, single and french doors.

Opening outwards

Opening outward R2 profile

view: outside

Opening outward R2 profile

view:inside

Opening inwards

R2 profile with triple glazing

view: outside

R2 profile with triple glazing

view:inside

R9 Features

•  100mm depth Profile

•  Contemporary Look

•  Internally Glazed

•  Dummy sashes to fixed pane

•  Choice of 10 standard colours

•  Available welded or full mechanical joints (note full mechanical requires all glass to be factory bonded to the frame)

•  WER A++

•  U-Values as low as 0.8W/m2K

•  Ultra-thick CEN A wall thickness provides additional screw retention

•  PAS24 and Part Q building regulations approved

•  Available unglazed or glass bonded

•  BS EN 6375 – 1 weather tested: Exposure Category of 1600; Class 3 Air Permeability Rating (600pa); a Class 9A (600pa) Water Tightness Rating; Class C4 (1600pa), wind resistance

COLOURS

chalk white

grained white

vintage cream

clotted cream

painswick

no. 38 grey

irish oak

english oak

silvered oak

eclectic grey

Please note: Due to variances of screens and displays, these colours must only be used as a guide.

technical informationr² profile options

Here are some typical options to achieve a modern, contemporary aesthetic:

R2

Frame

Sash

flush sash

Contemporary flush

Transom / mullion

Add-on

20mm

bead

28mm square

bead

44mm square

sill

30mm

sill

55mm radlington

R7 in-and-out flush

75mm contemporary uPVC flush casement

Flush on both exterior and interior gives the AEON R7 its chic modern appearance and versatility to be used for both contemporary new builds and traditional British homes alike. All glass sight-lines are perfectly equal.

Five bead choice

Choose from five glazing beads for a fully personalised choice, continue the contemporary appearance with the square or a decorative bead to soften the aesthetic.

Performance solution

R7 outperforms many other systems with a sophisticated seven-chamber design and intelligent features.
It’s the ideal solution for a wide range of properties, from modern new builds to city apartments and country cottages to semi-detached houses, with everything in between, the AEON R7 is intended to be the window of your choice.

R7 profile

view: outside

R7 profile

view: inside

R7 Features

•  75mm depth Profile

•  7 thermally-efficient chambers

•  Contemporary Look

•  Dummy sashes to fixed pane

•  Available welded or full mechanical joints
(Note: full mechanical requires all glass to be factory bonded to the frame)

•  28mm double-glazed and 44mm triple glazing options

•  WER A++

•  U-Values as low as 0.8W/m2K

•  Ultra-thick CEN A wall thickness provides additional screw retention

•  PAS24 and Part Q building regulations approved

•  Choice of 13 standard colours

•  Available unglazed or glass bonded

•  BS EN 6375 – 1 weather tested: Exposure Category of 1600; Class 3 Air Permeability Rating (600pa); a Class 9A (600pa) Water Tightness Rating; Class C4 (1600pa), wind resistance

COLOURS

chalk white

grained white

vintage cream

clotted cream

painswick

no. 38 grey

golden oak

english oak

rosewood

cotswold green

corse lawn

eclectic grey

no. 10 black

Please note: Due to variances of screens and displays, these colours must only be used as a guide.

technical information

The R7 profile

Frame and sash technical drawings

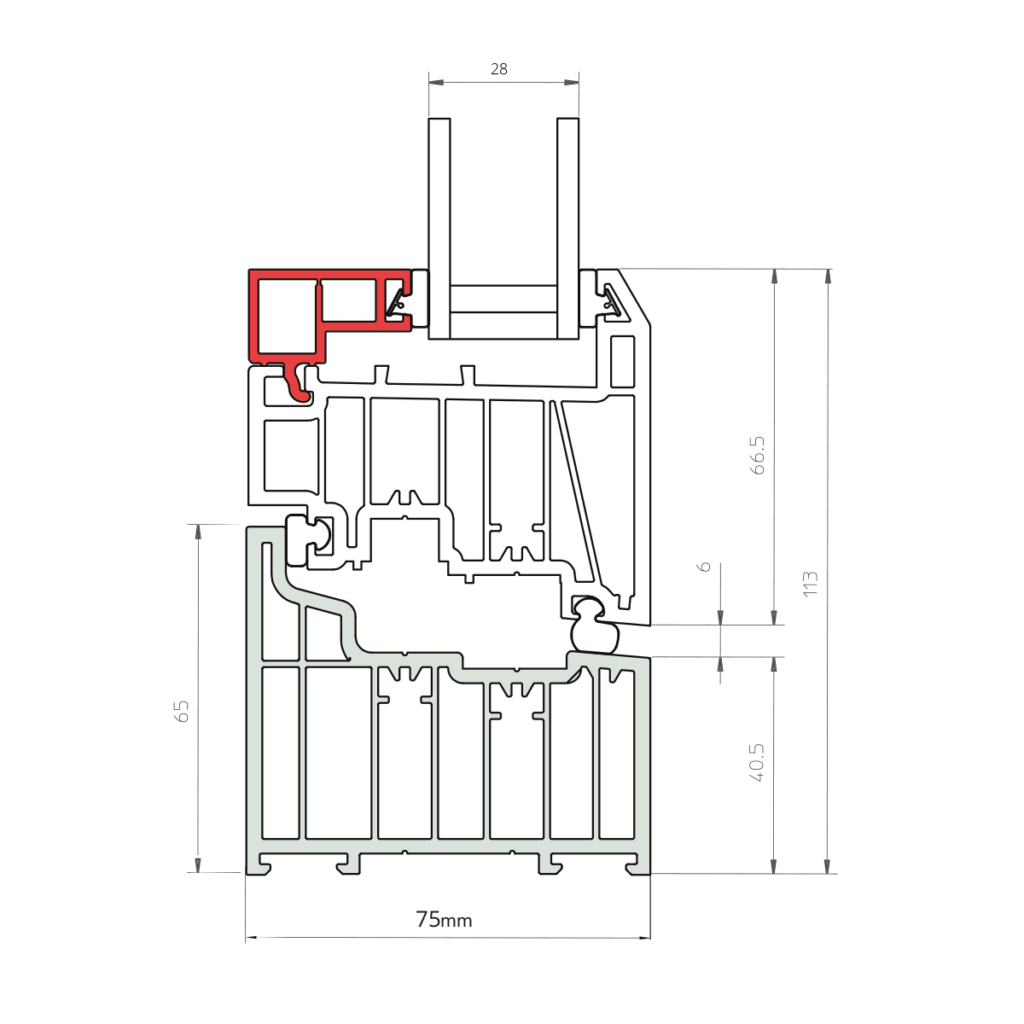

R7 outer frame and sash with square bead

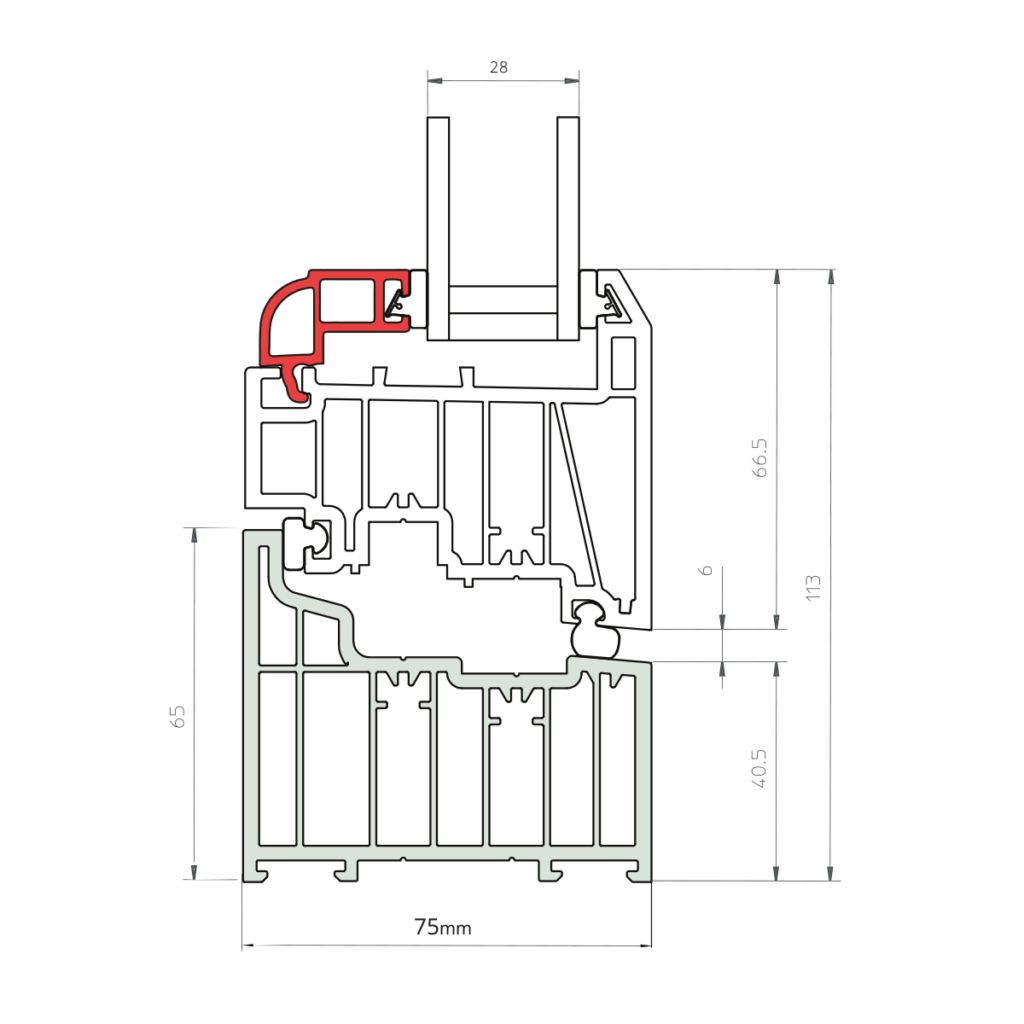

R7 outer frame and sash with decorative bead

Some typical options to achieve that R7 in-and-out flush look:

R7

Frame

Sash

flush sash

contemporary flush

mullion / transom

sill

30mm

bead

44mm square

bead

28mm staff bead

Rio classic flush

Rehau Rio 70mm flush uPVC casement

Rio flush fit windows benefit from enhanced noise reduction, energy efficiency and are easy to maintain.

Not only does the Rio flush fit window authentically replicate the features of a traditional timber window, it also compliments modern homes perfectly with clean lines and minimalist appearance. To accurately recreate authenticity the Rio flush window profile has the option of a deep bottom rail.

The rio flush sash is compatible with all Rehau outer frames.

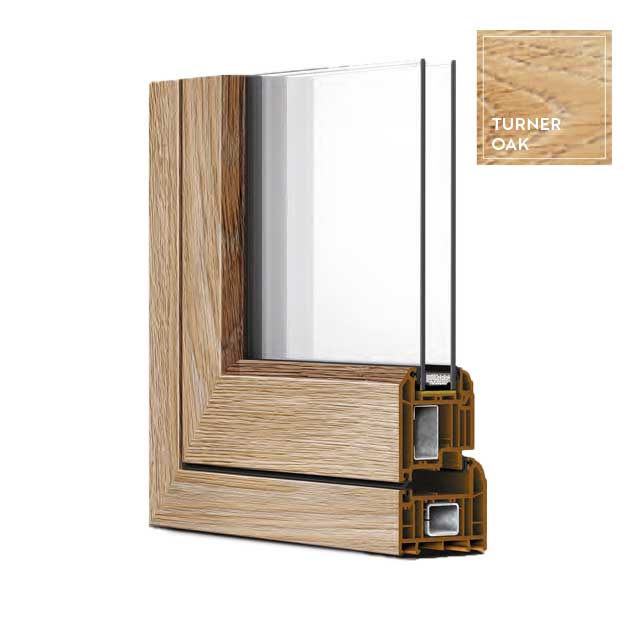

Rio flush sash profile

view: outside

colour: turner oak

1200x1200-clotted_cream

Rio Features

•  70mm depth profile

•  Optional deep bottom rail

•  Edge outer frame

•  Bevel outer frame

•  Dummy sashes to fixed pane

•  Available welded or full mechanical joints (note full mechanical does not require glass bonding due to the strength of the internal corner blocks)

•  Choice of 11 standard colours

•  WER A++

•  U-Values as low as 0.8W/m2K

•  PAS24 and Part Q building regulations approved

rio weld options

full mechanical joint (inside)

full mechanical joint (outside)

full weld (inside)

full weld (outside)

COLOURS

simply white

clotted cream

chartwell green

pearl grey

turner oak

golden oak

pearl grey

slate grey grained

anthracite grey (smooth)

anthracite grey

black brown

Please note: Due to variances of screens and displays, these colours must only be used as a guide.
