To help you when ordering aluminium windows, this page contains all options for aluminium frames and sashes that we manufacture.

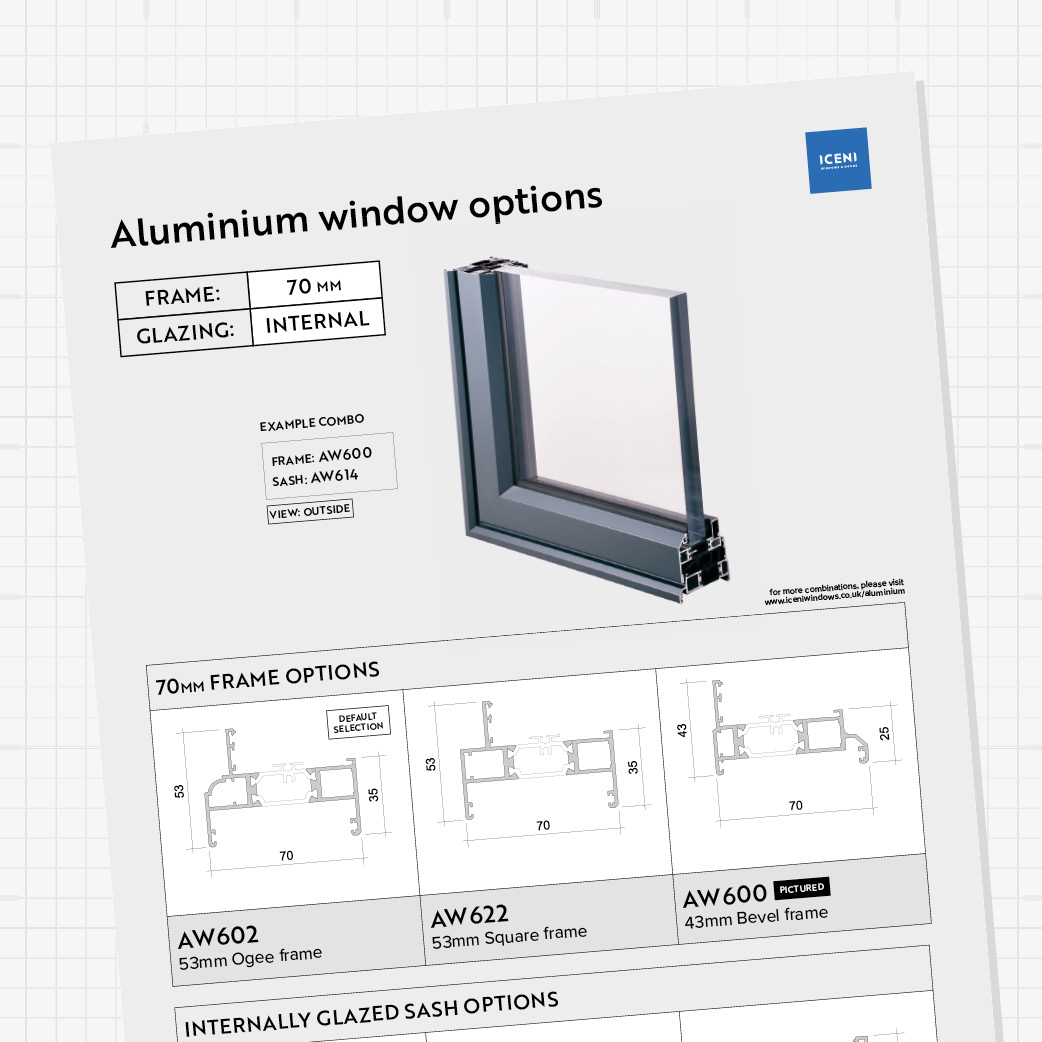

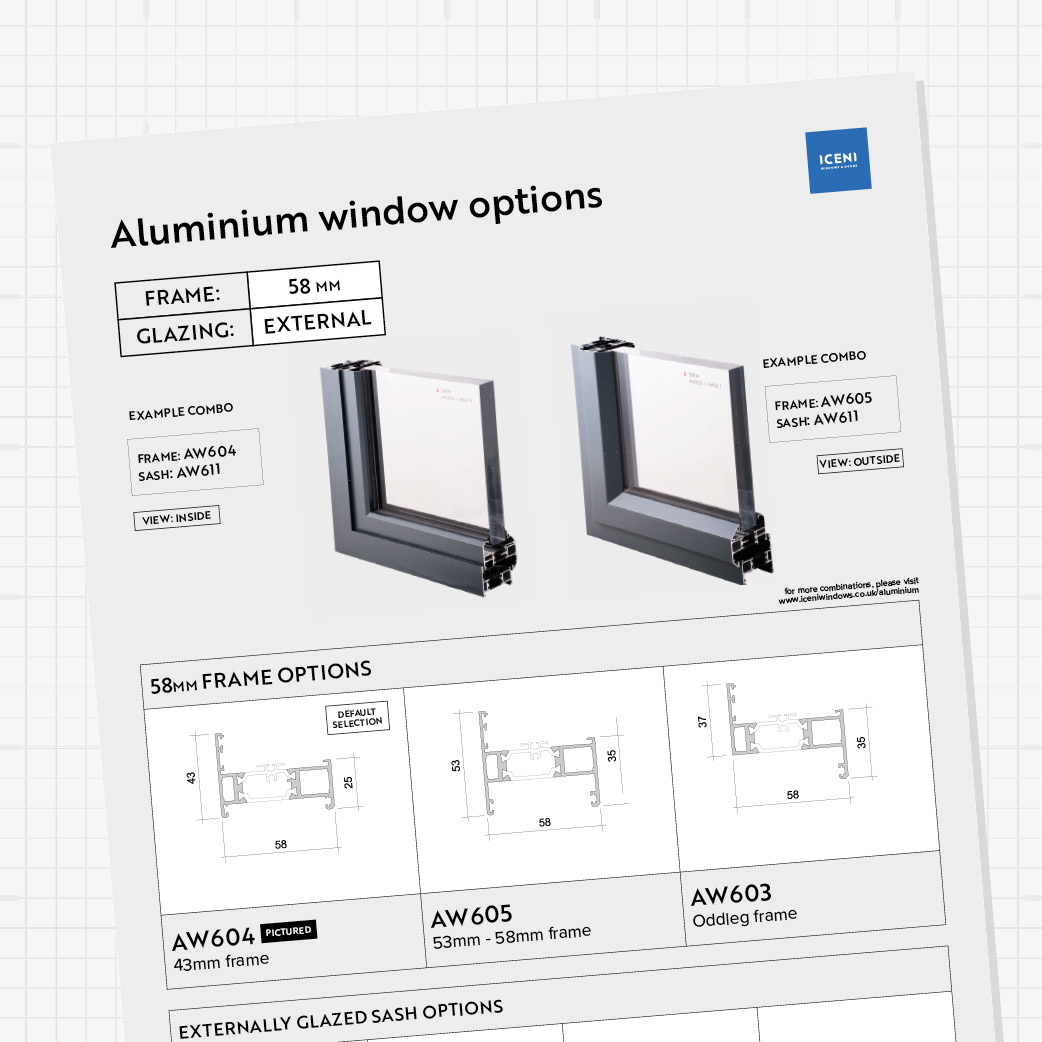

Firstly, use this table to obtain the correct order form
(click image to download)

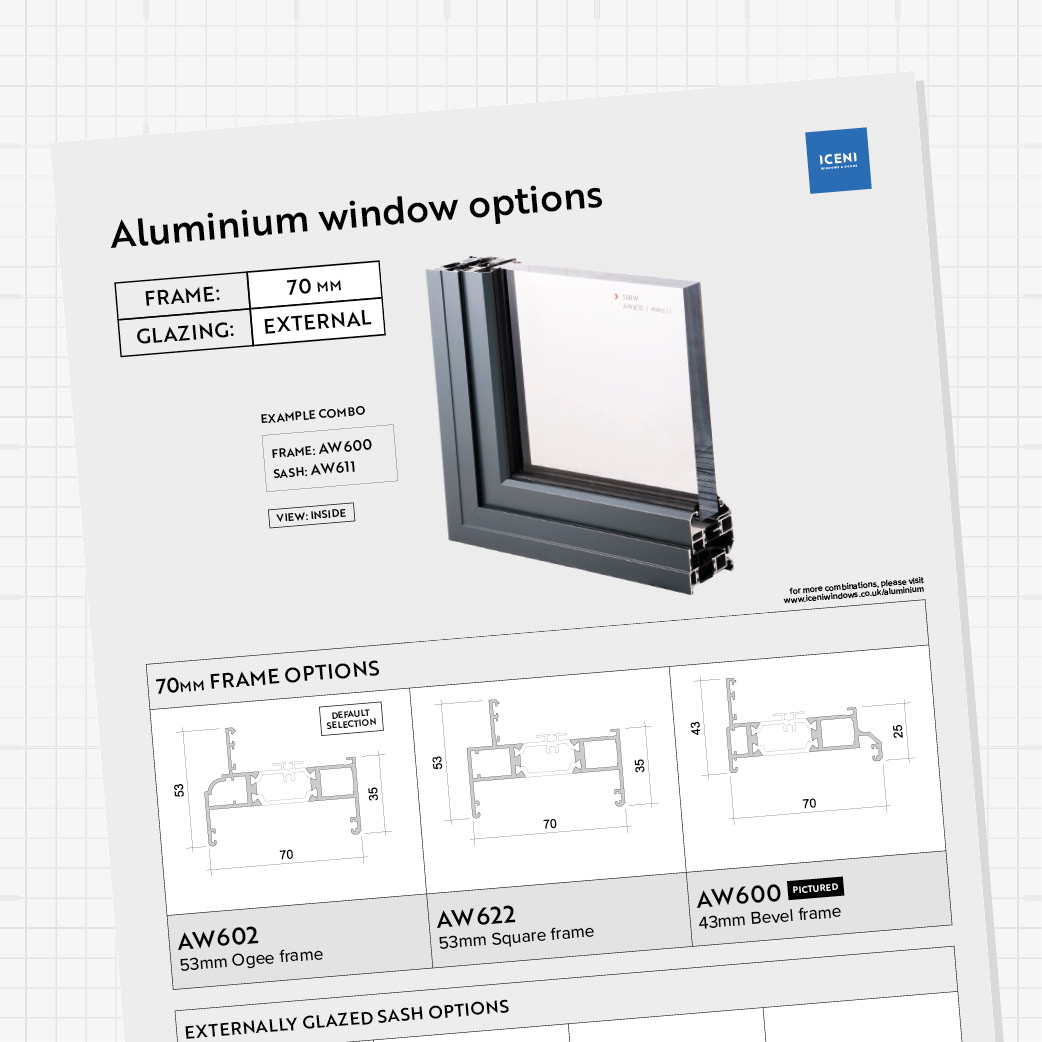

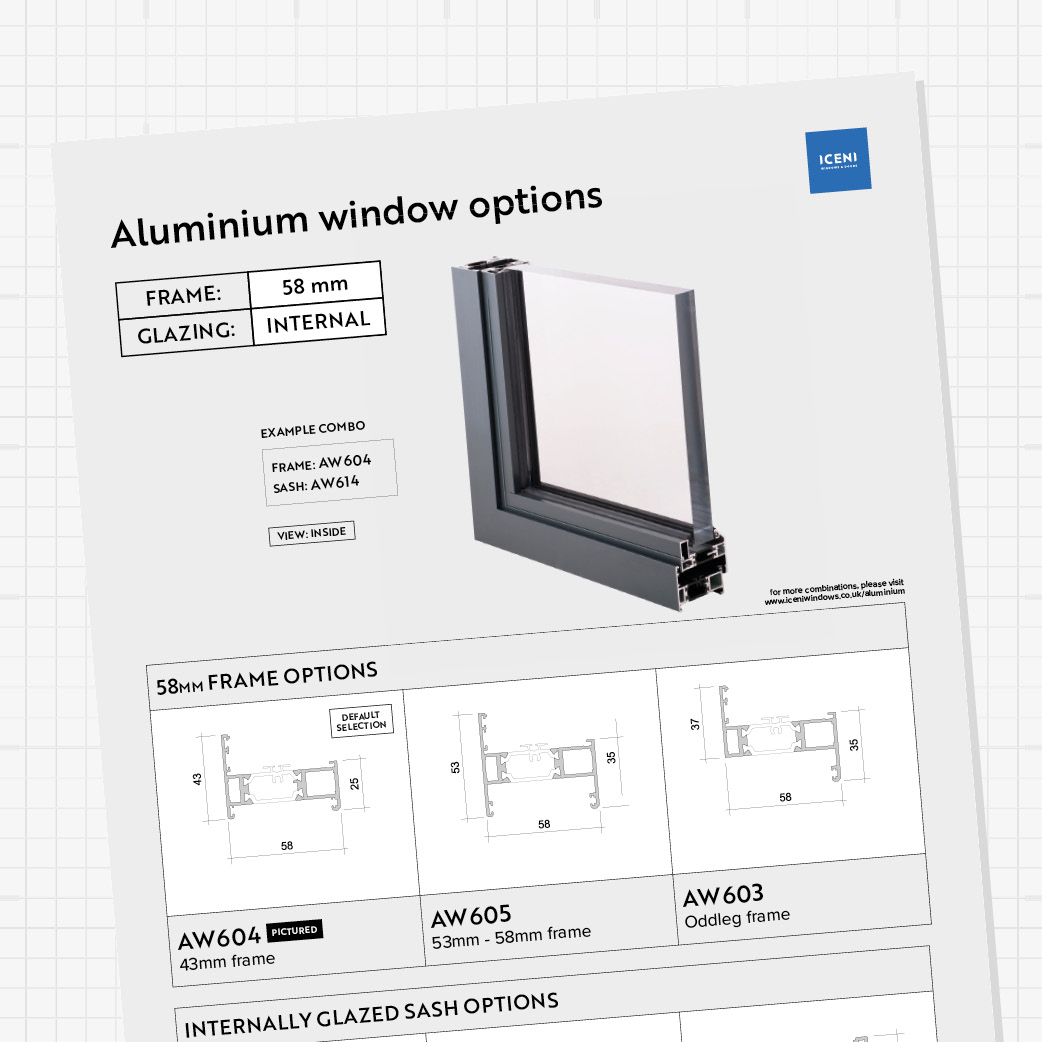

| Glazed Sash | 58mm frame | 70mm Frame |
|---|---|---|
| External |  |  |
| Internal |  |  |
Use these buttons to instantly jump to the sections below
Frames

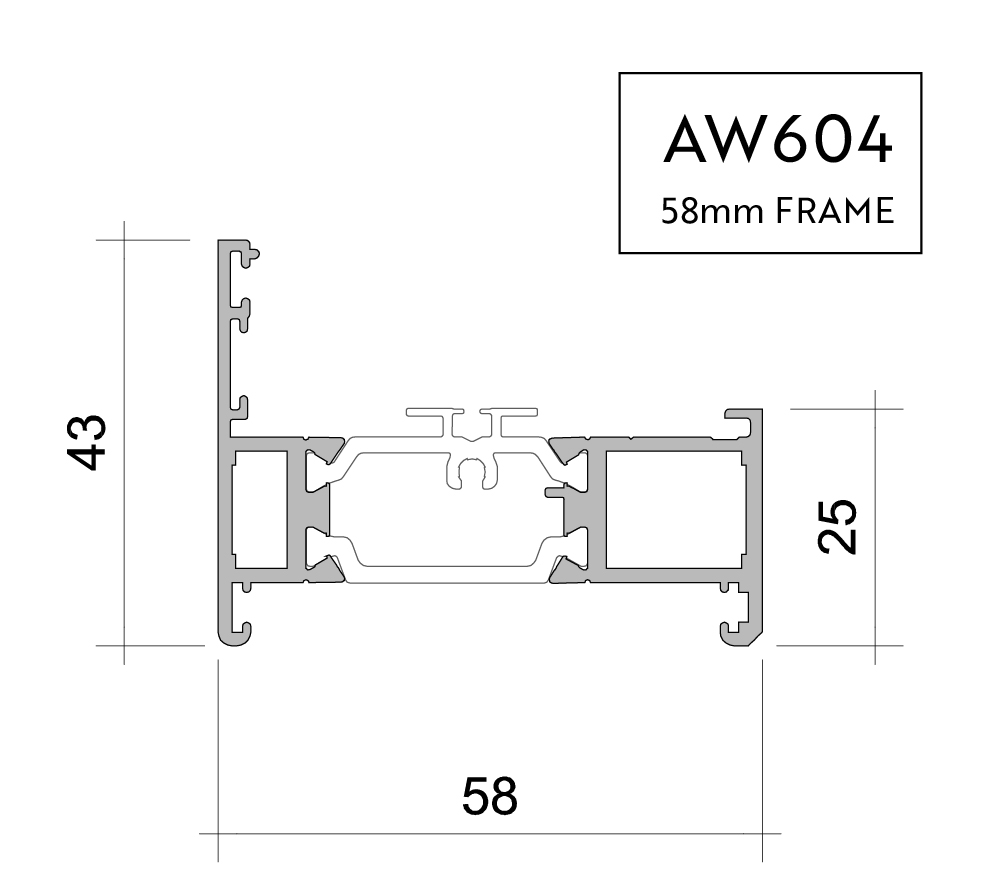

AW604
43mm frame

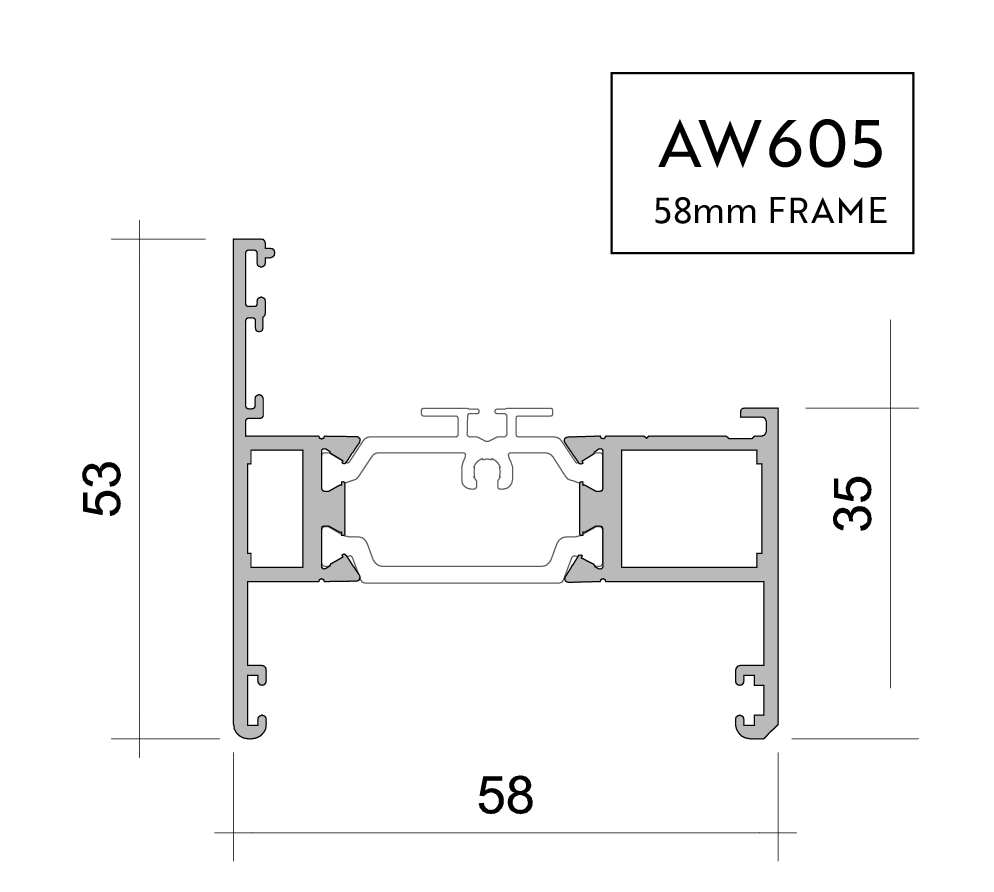

AW605
53mm – 58mm frame

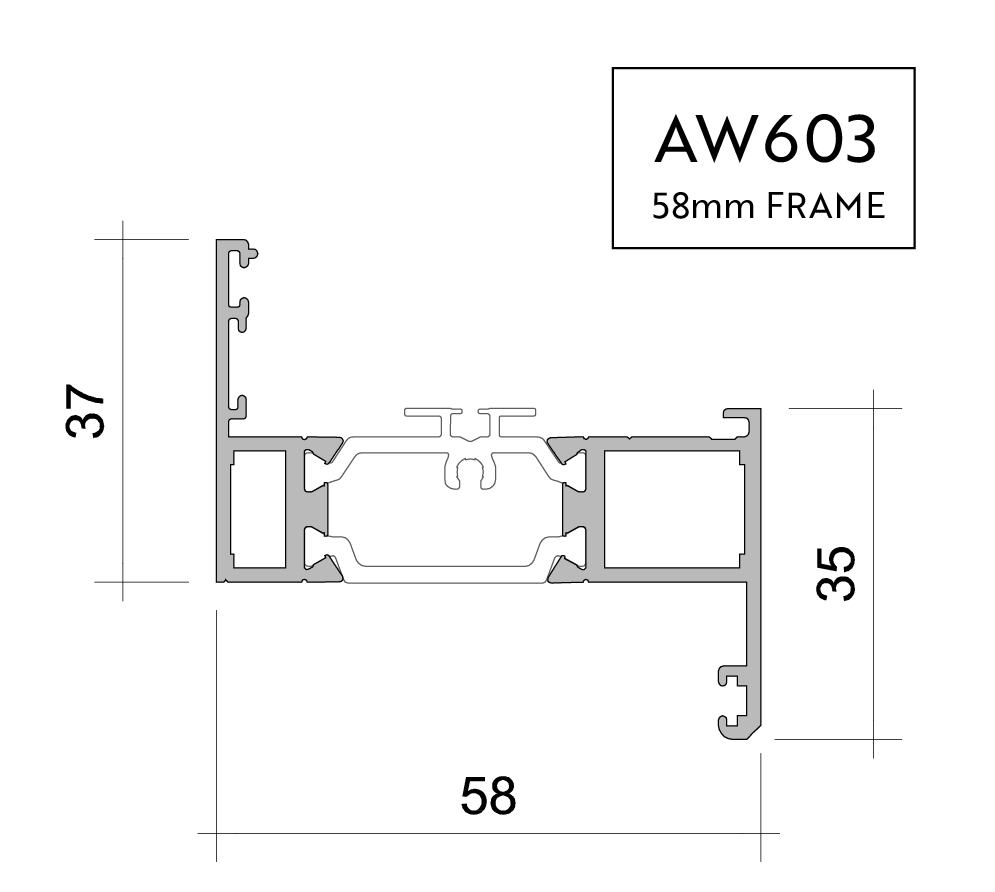

AW603
Oddleg frame 53mm
Sashes

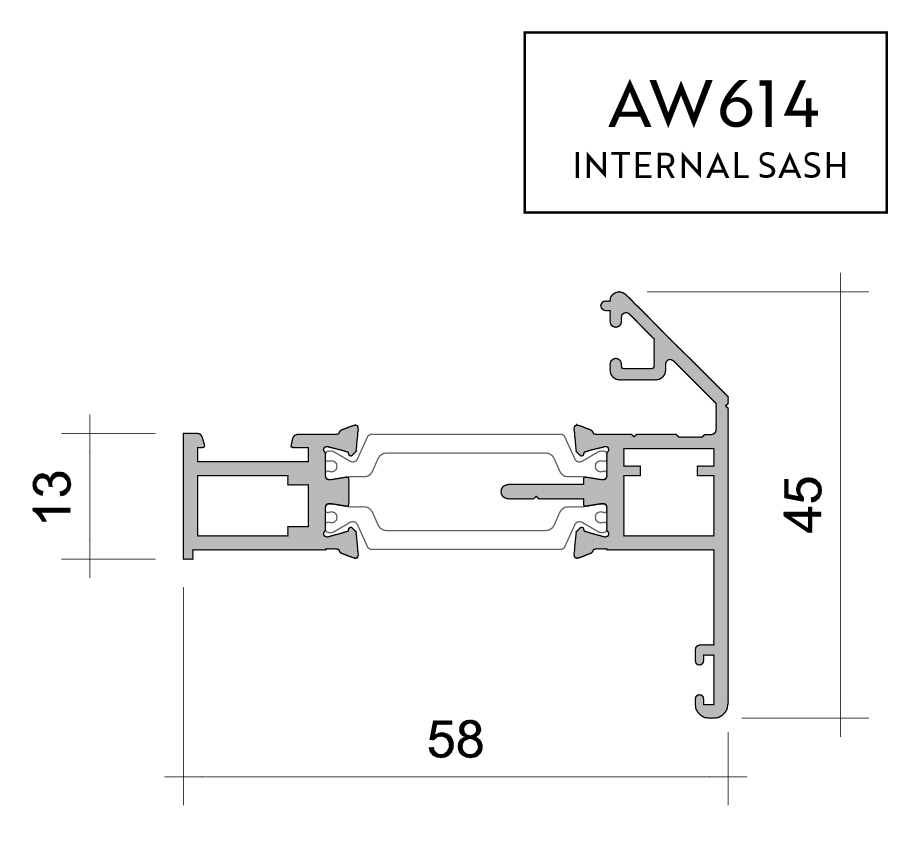

AW614
SL bevel sash

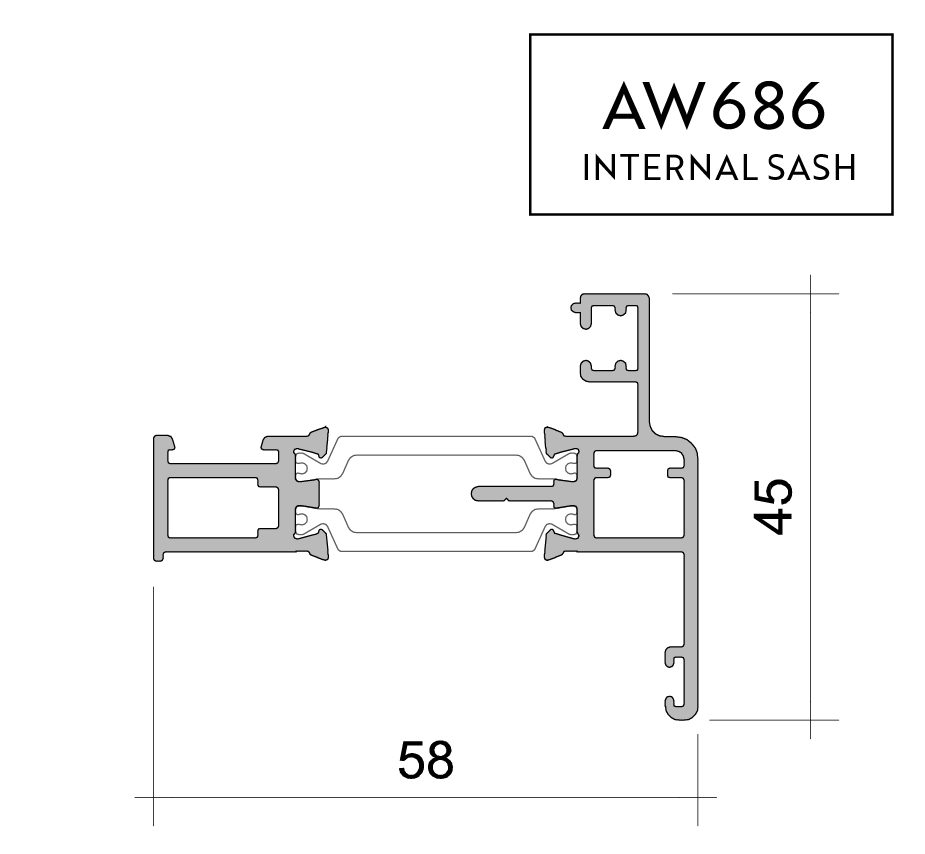

AW686
SL stepped sash

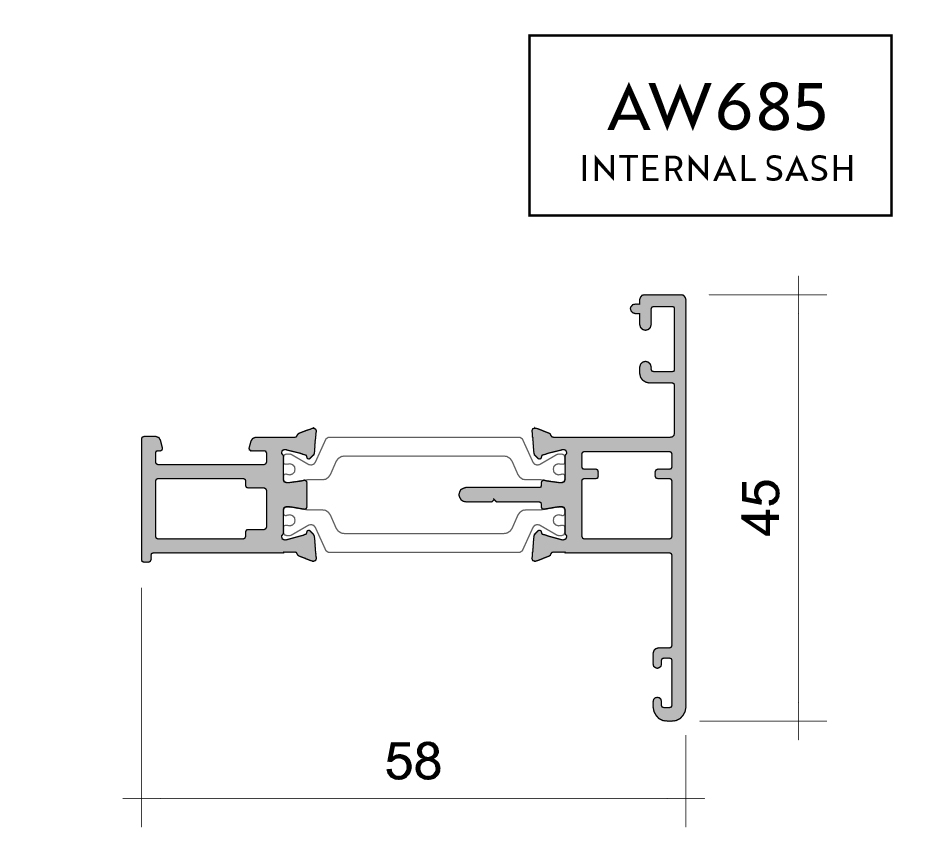

AW685
Flat sash

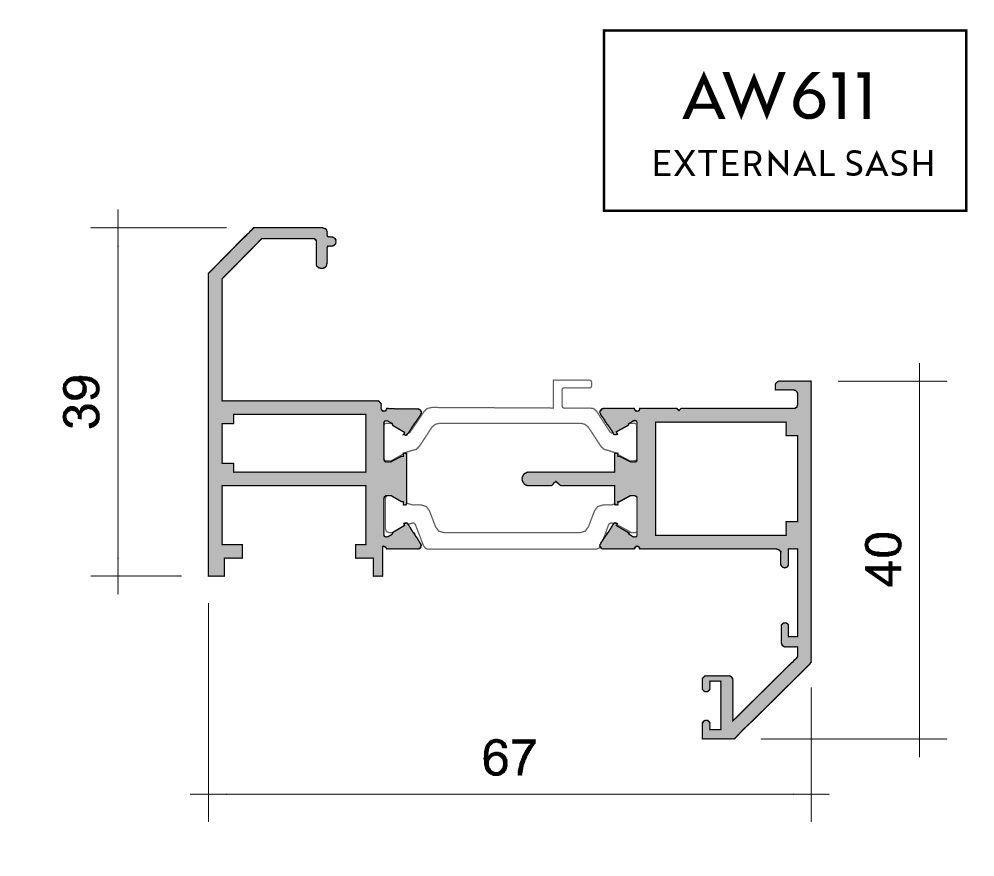

AW611
Euro bevel sash
AW613
Euro ogee sash

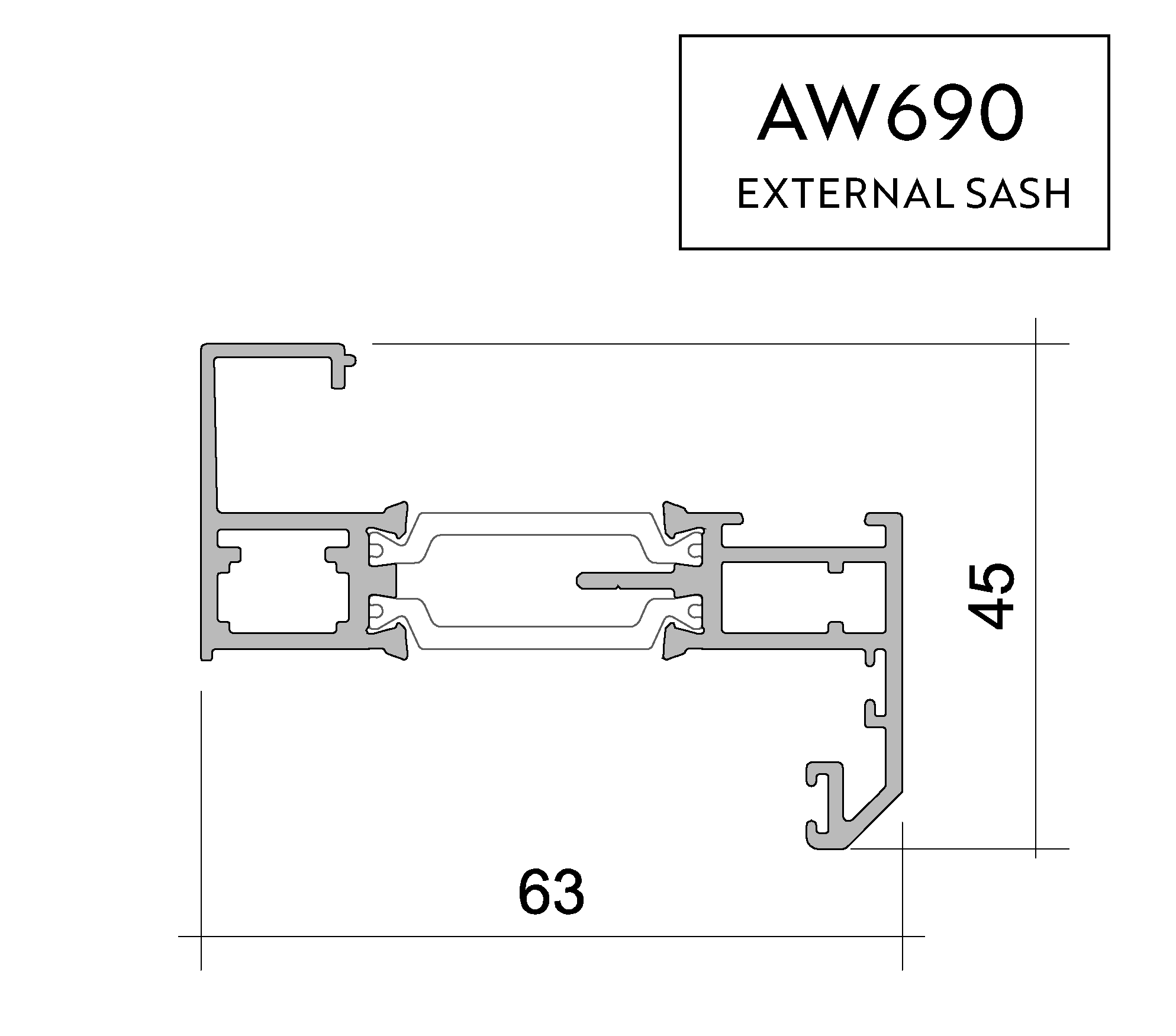

AW690
SL bevel sash
AW624
43mm bevel frame
Aluminium profile suitesThe following sections illustrate which profile is interchangeable with each other
FLUSH ALUMINIUM SUITE
AW604
43mm / 58 Frame
AW605
53mm /58 Frame
AW608
73mm /58 Frame
OGEE ALUMINIUM SUITE
AW602
53mm Ogee / 70 Frame
AW607
73mm Ogee / 70 Frame
AW660
28mm Square Bead
AW513
28mm Bevel Bead
SQUARE ALUMINIUM SUITE

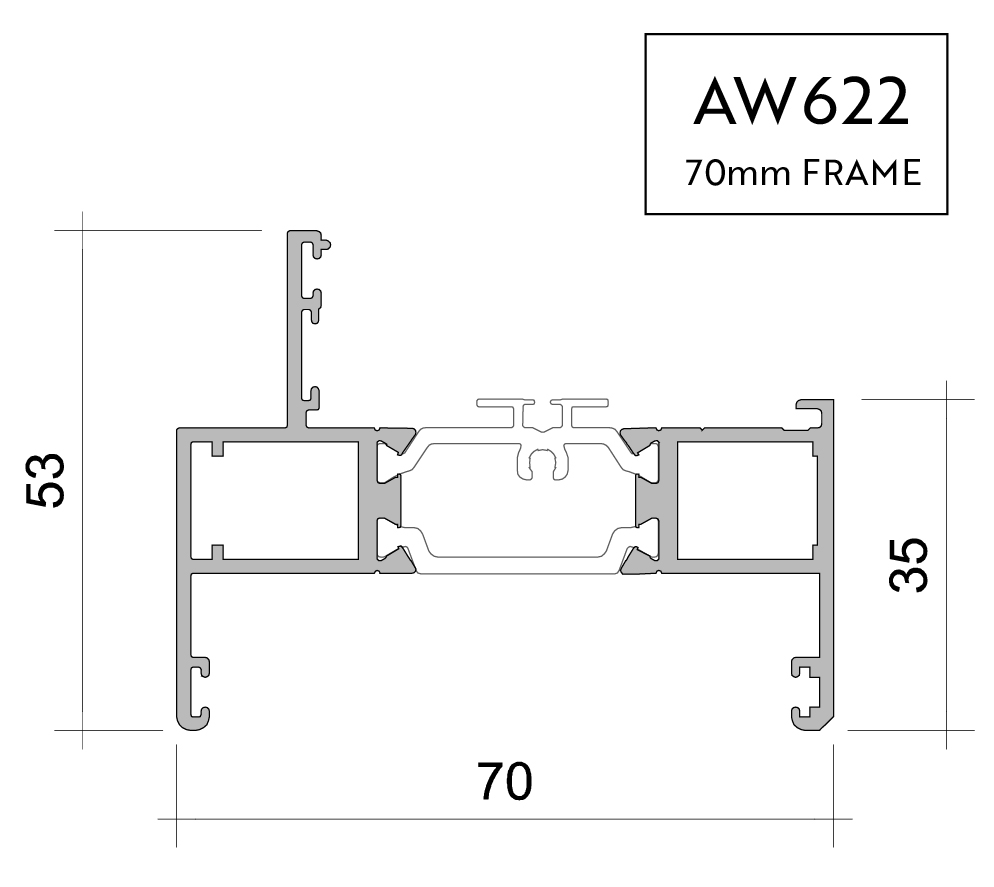

AW622
53mm Square / 70 Frame
AW623
73mm Square / 70 Frame
BEVEL ALUMINIUM SUITE
AW600
43mm Bevel / 58 Frame
AW601
53mm Bevel / 58 Frame
AW606
73mm Bevel / 58 Frame
AW603
Oddleg frame
ExamplesPopular frame and sash combinations

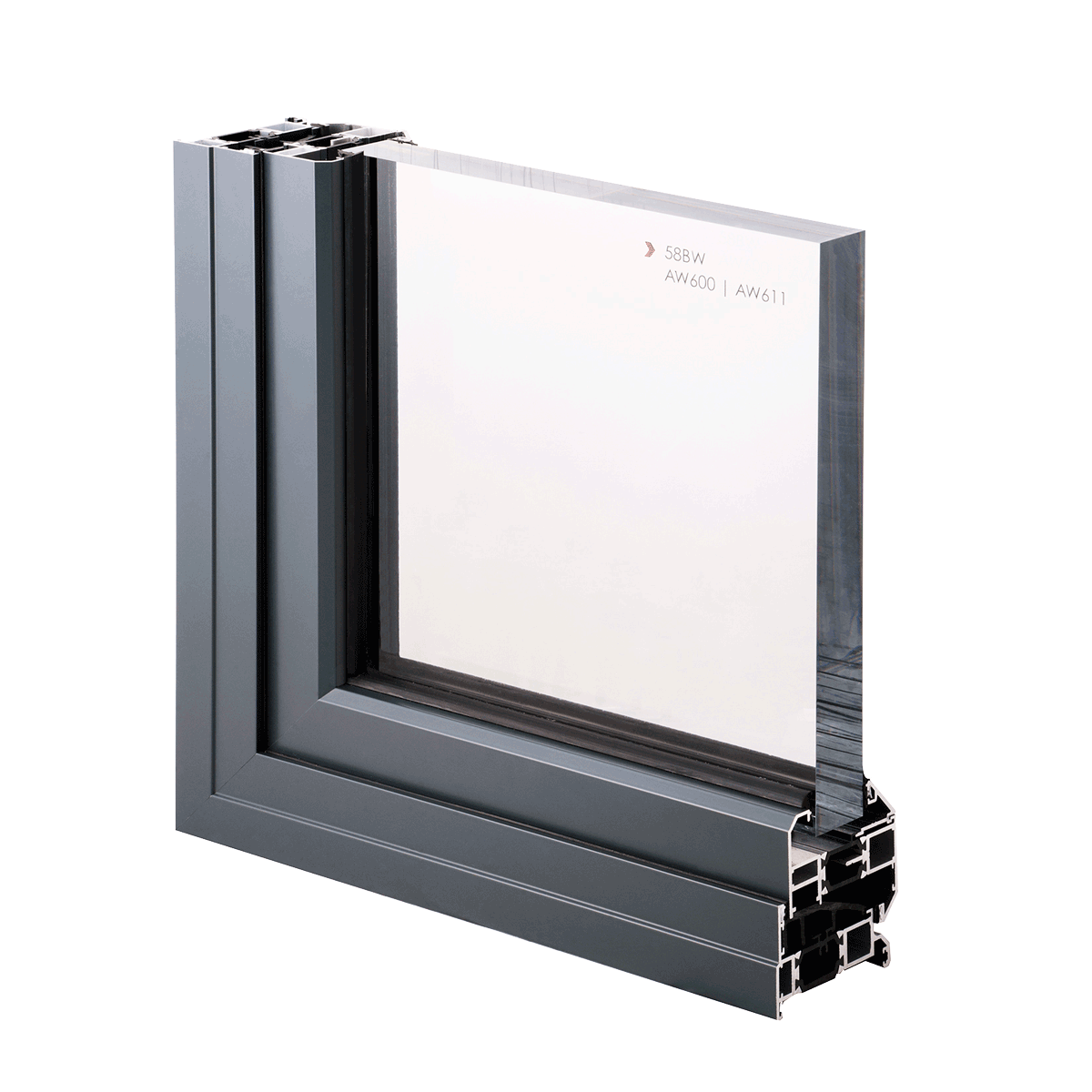

Frame: AW600 (70mm)
Sash: AW611 Euro bevel (externally glazed)
Viewed inside

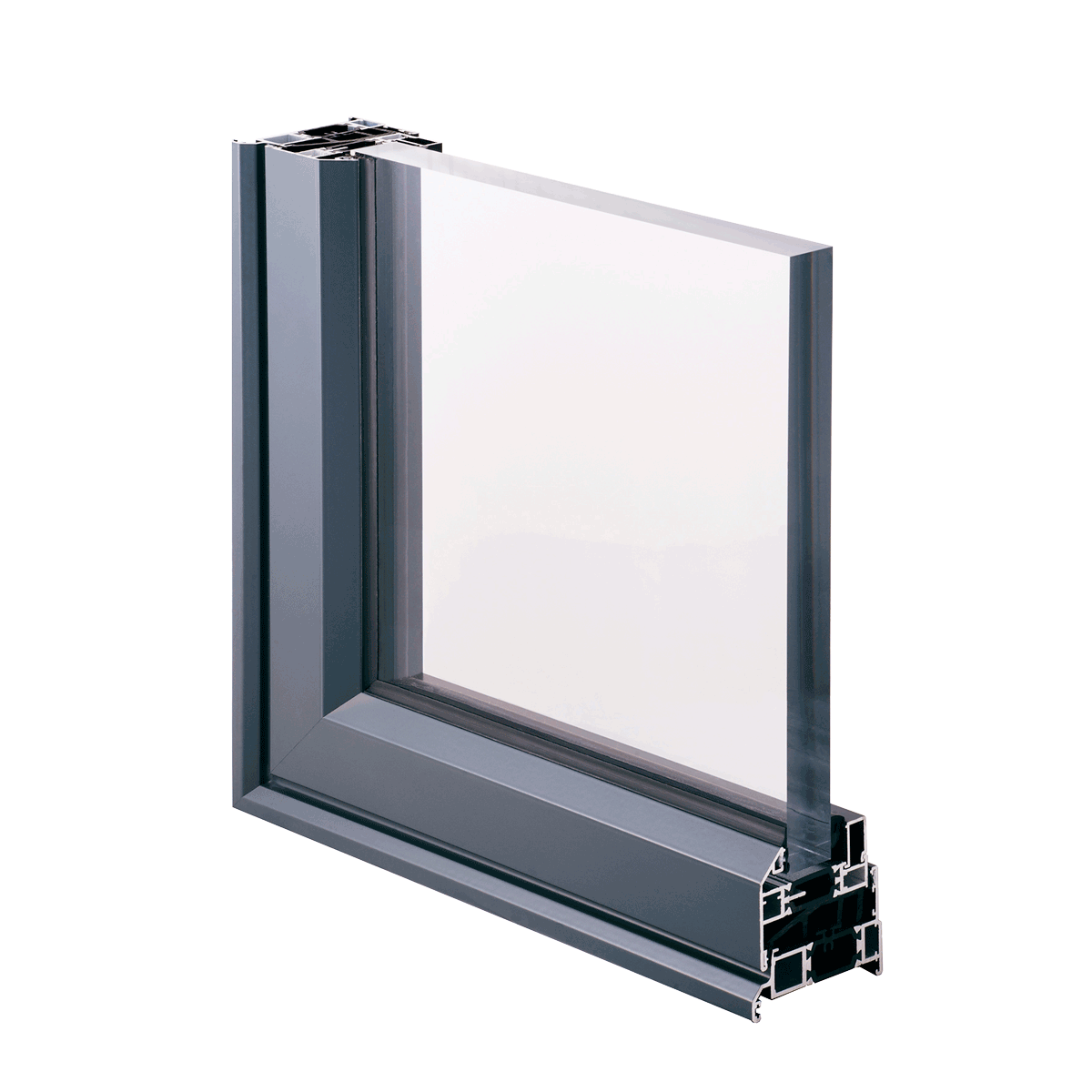

Frame: AW600 (70mm)
Sash: AW614 SL bevel (internally glazed)
Viewed outside

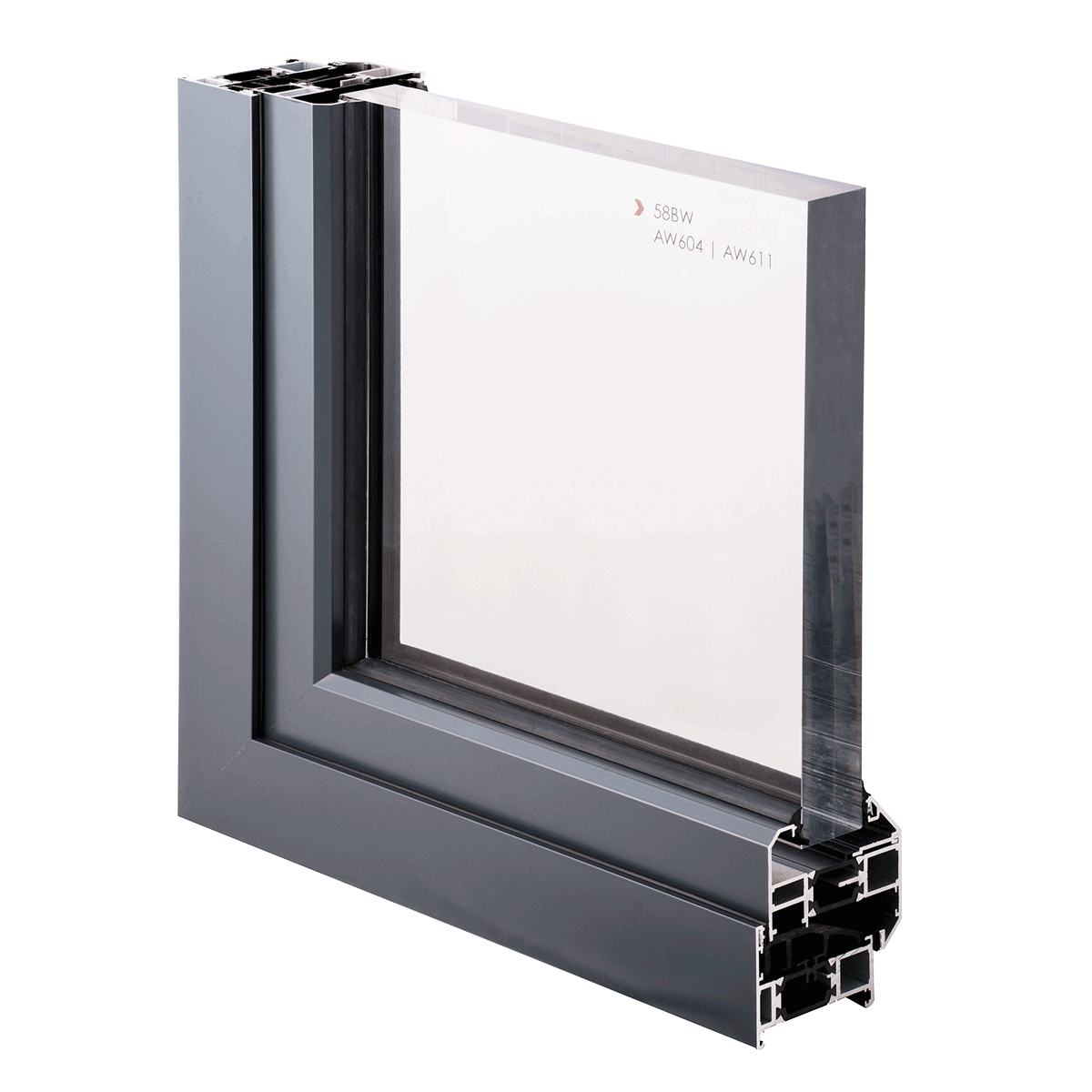

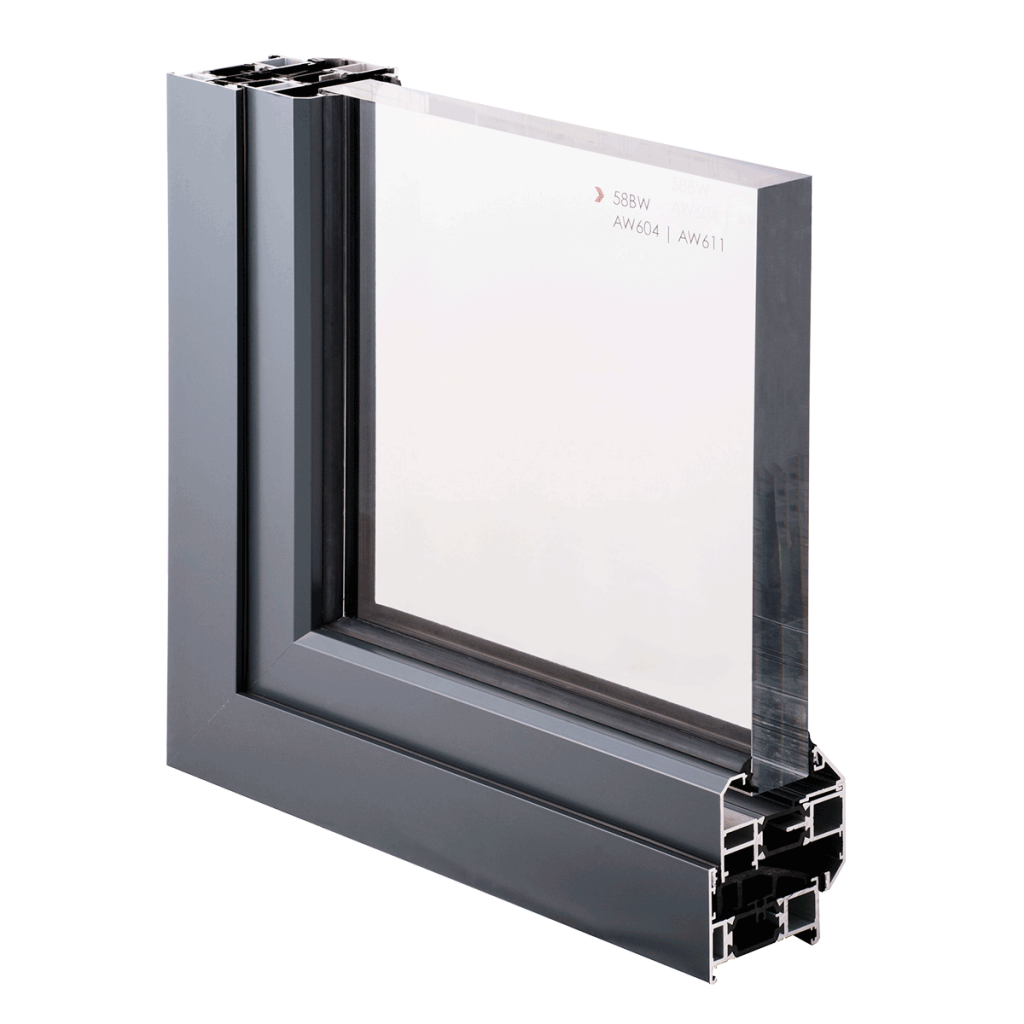

Frame: AW604 (58mm)
Sash: AW611 Euro bevel (Externally glazed)
Viewed inside

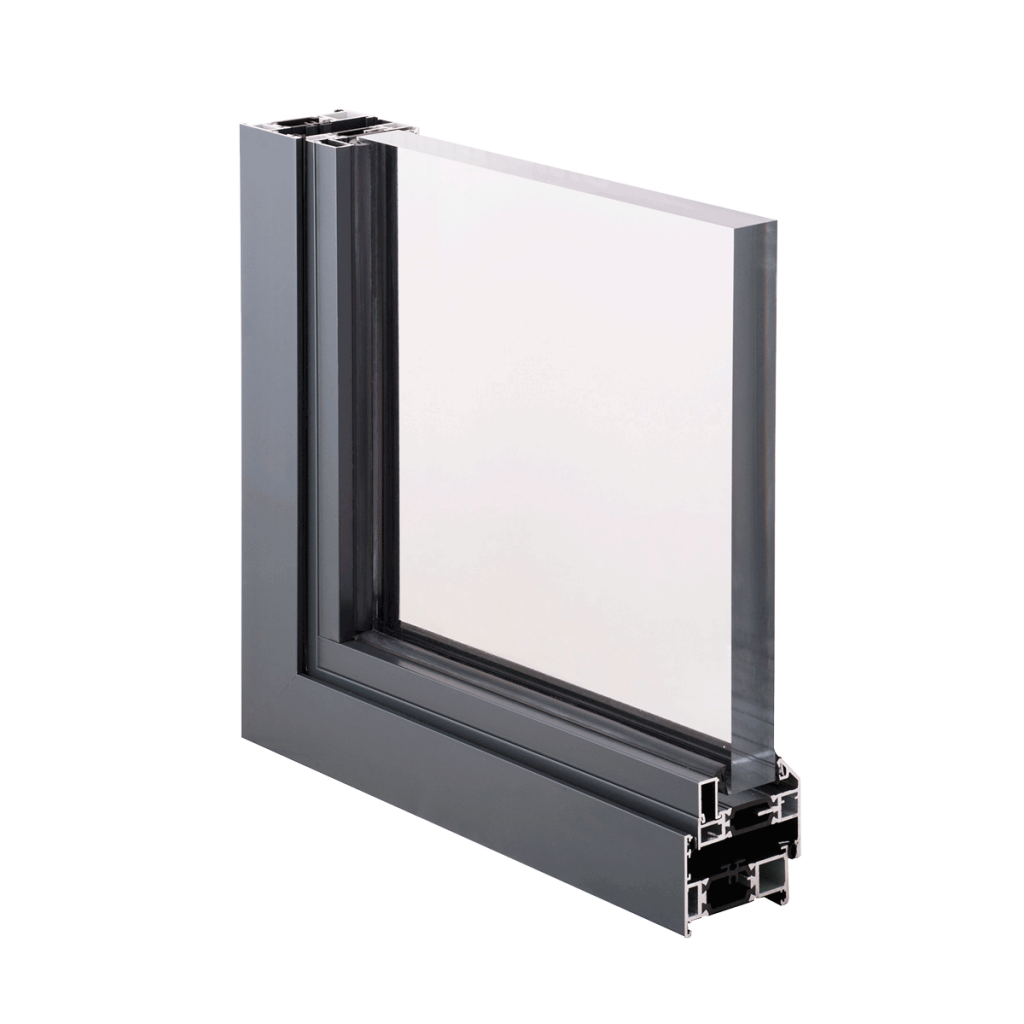

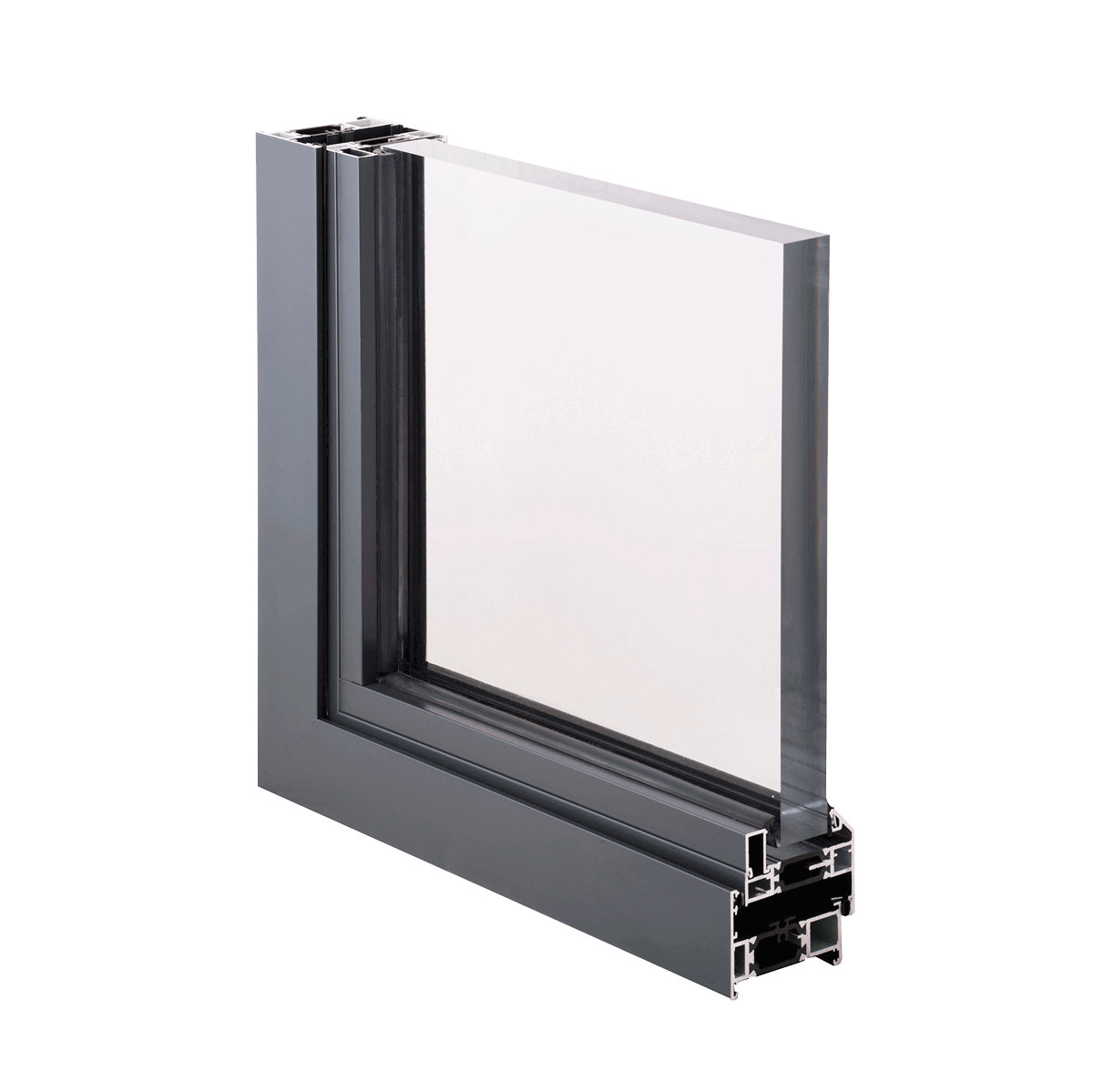

Frame: AW604 (58mm)
Sash: AW614 Euro bevel (internally glazed)
Viewed inside

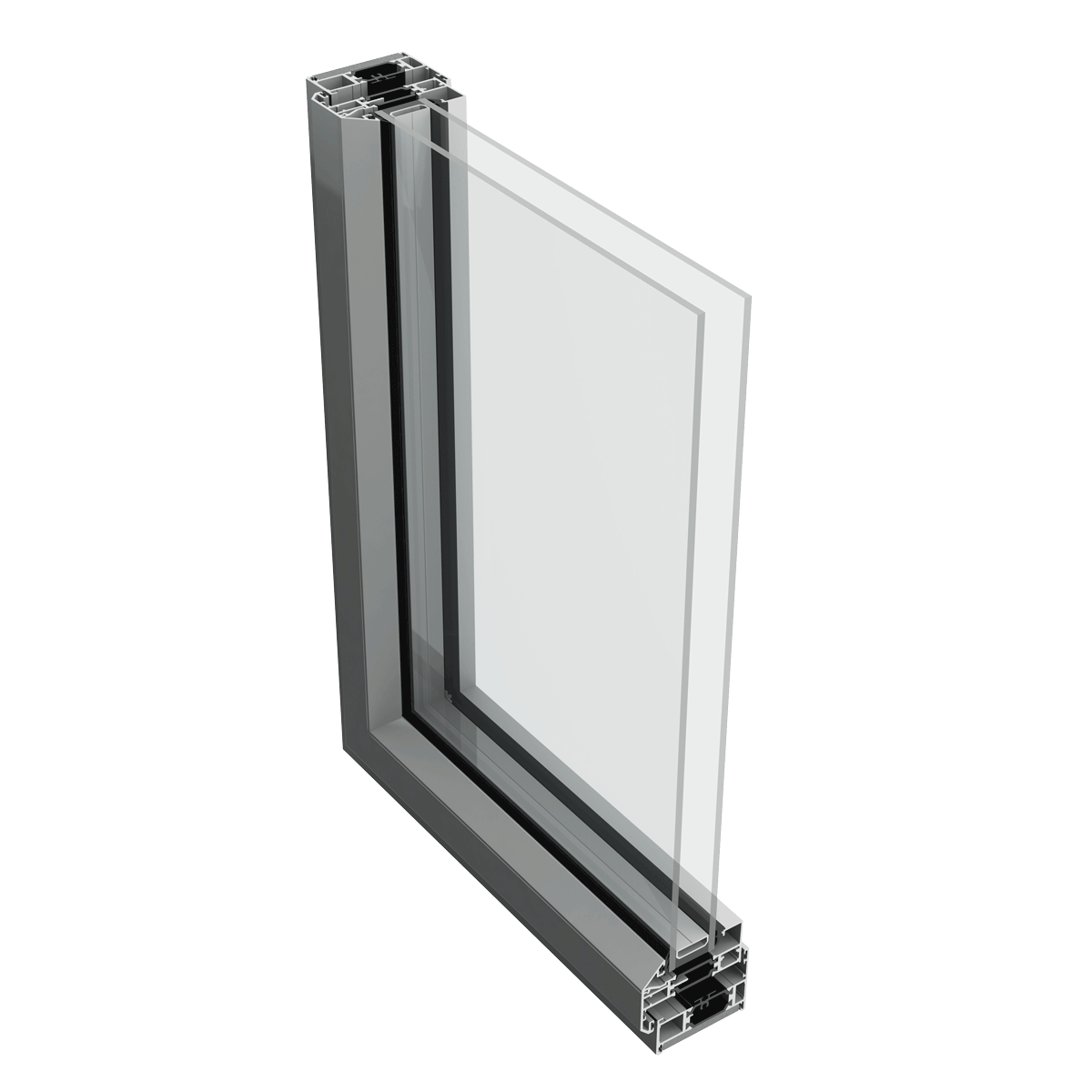

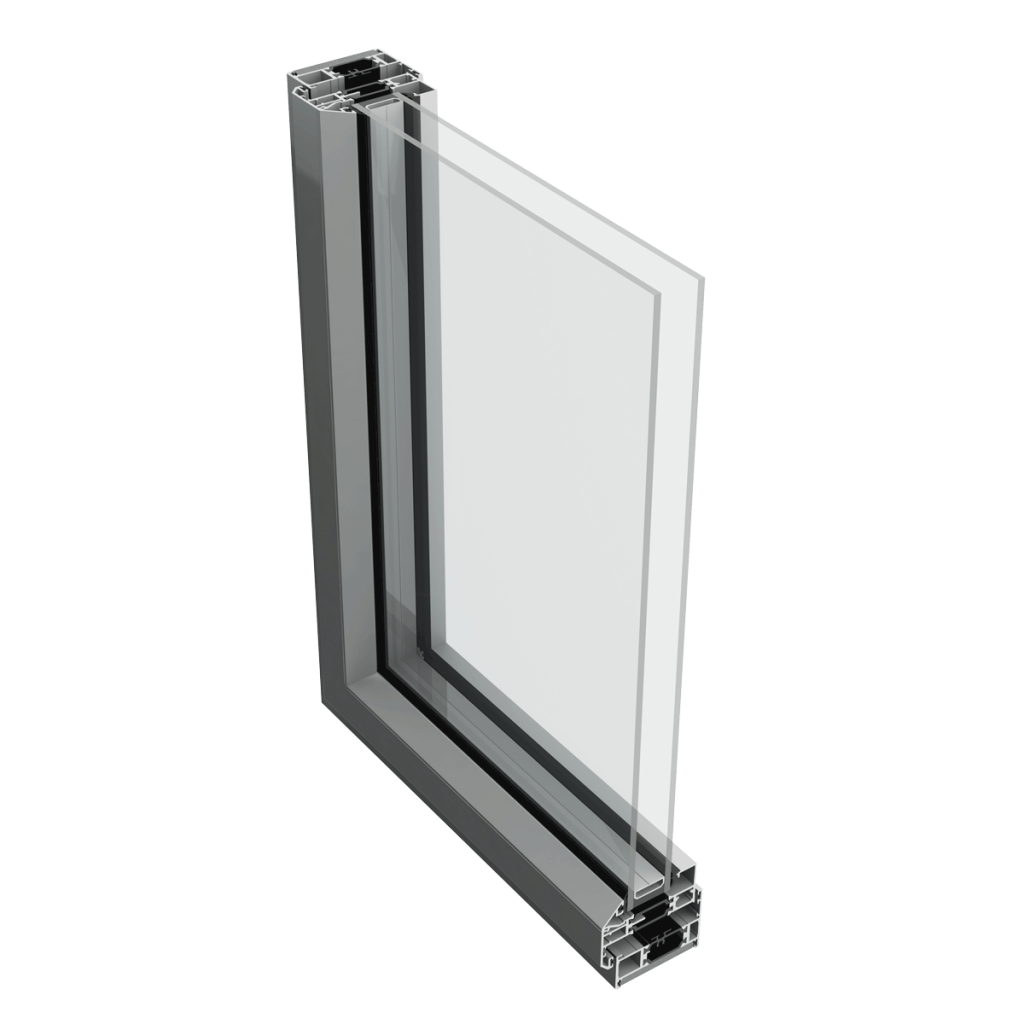

Frame: AW604 (58mm)
Sash: AW690 SL bevel (Externally glazed)
Viewed outside
Frame: AW604 (58mm)
Sash: AW690 SL bevel (Externally glazed)
Viewed inside

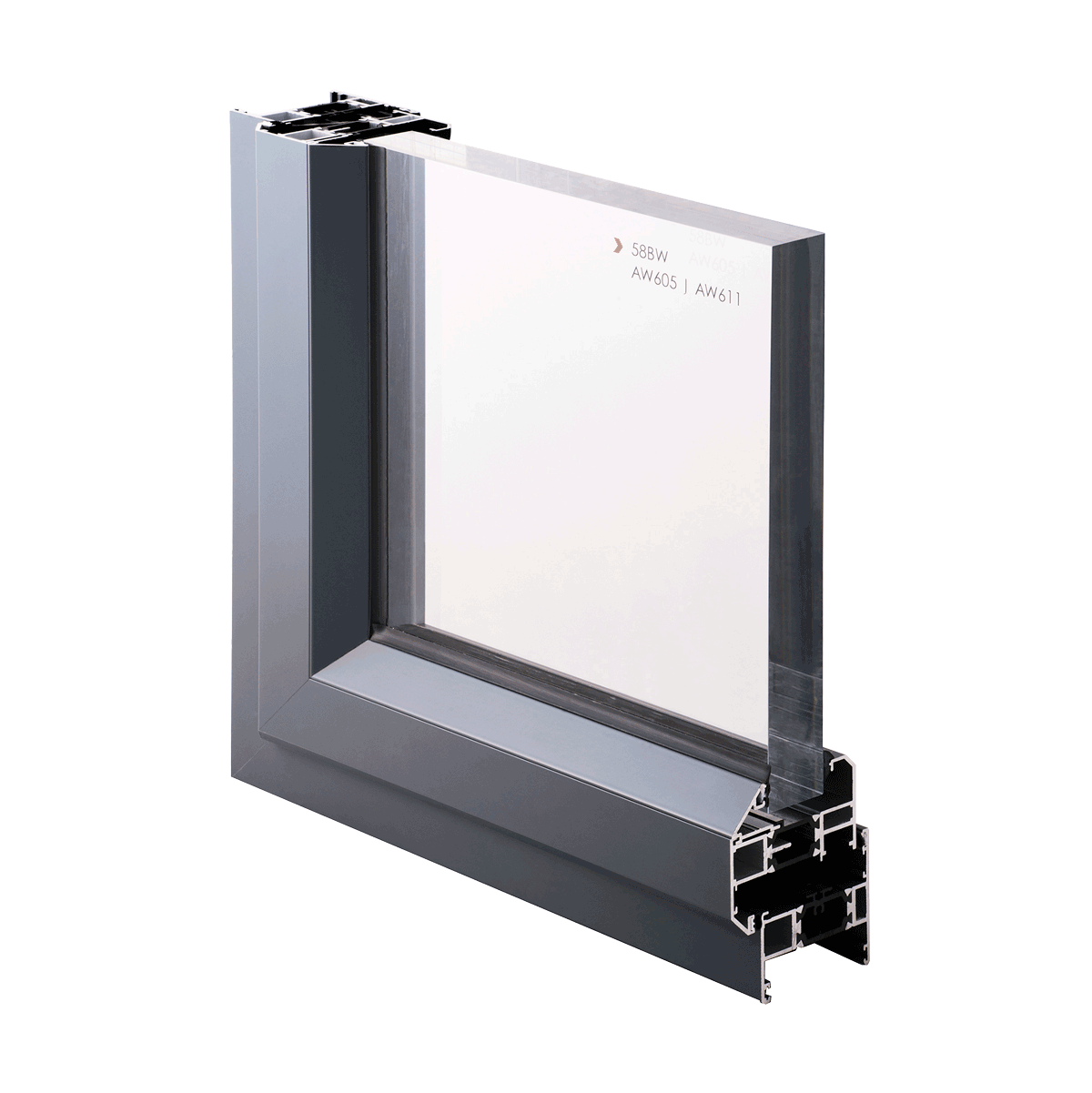

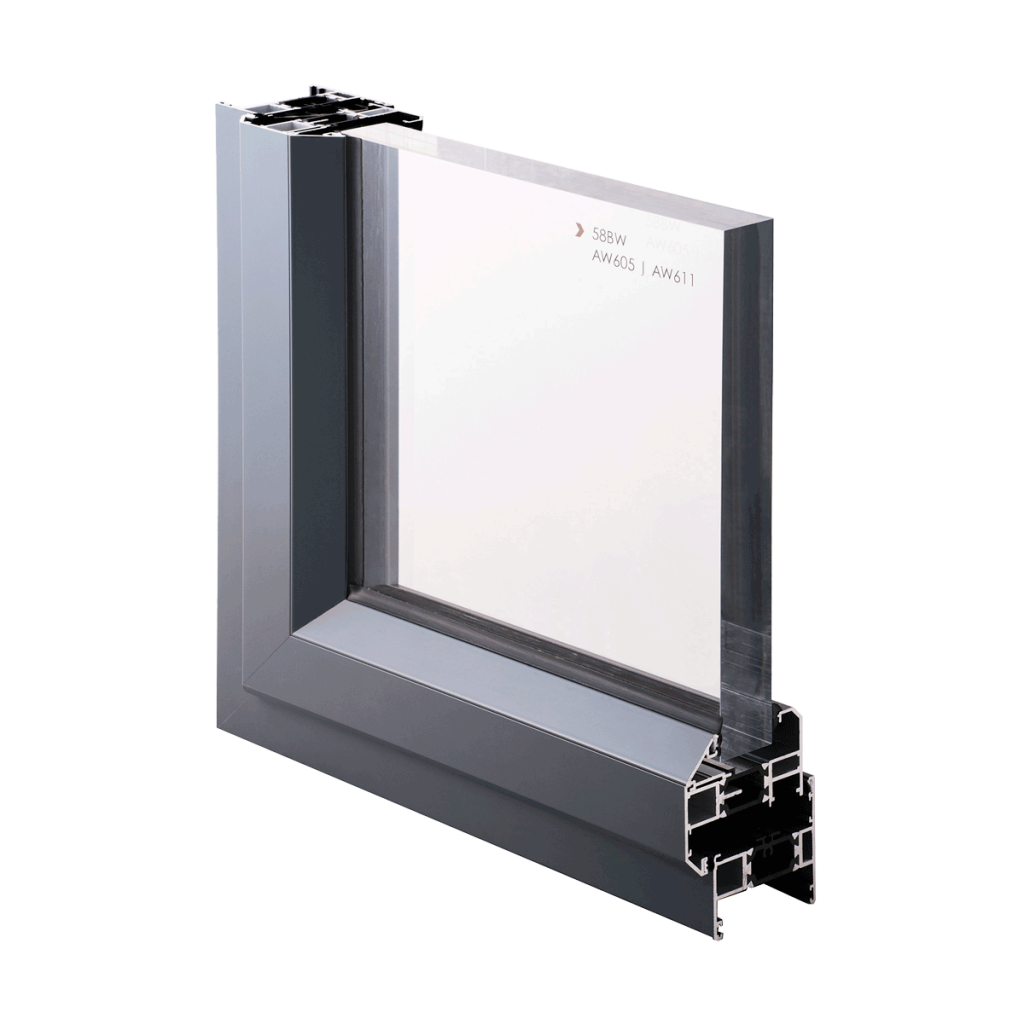

Frame: AW605 (58mm)
Sash: AW611 Euro bevel (externally glazed)
Viewed outside
Order forms
